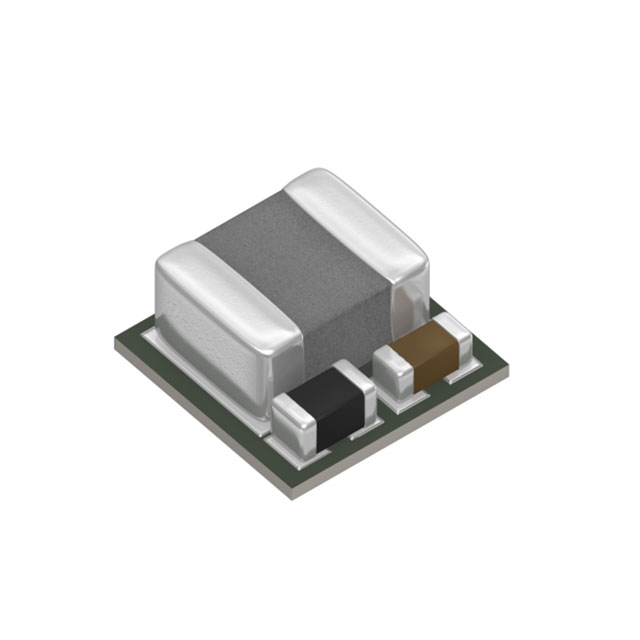

FS1406-1100-AL

FS1406-1100-AL is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is DC DC CONVERTER 1.1V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for FS1406-1100-AL

• Description：DC DC CONVERTER 1.1V
• Series：µPOL™ micro-POL
• Mfr：TDK Corporation
• Package：Tape & Reel (TR)
• Type：Non-Isolated PoL Module, Digital
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：16V
• Voltage - Output 1：1.1V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 125°C
• Efficiency：-
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.13" L x 0.13" W x 0.06" H (3.3mm x 3.3mm x 1.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for FS1406-1100-AL
