FS3L100R07W3S5B11BPSA1

Overview

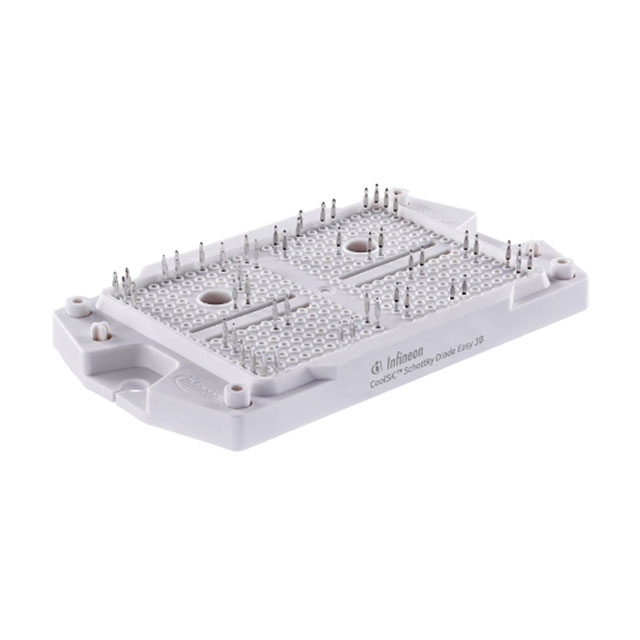

The FS3L100R07W3S5B11BPSA1 is a 650 V, 100 A EasyPACK™ IGBT module utilizing TRENCHSTOP™ 5 technology. It features an emitter-controlled diode and PressFIT contact technology with an integrated NTC sensor. The module includes three-level and inverter IGBTs and diodes. Key electrical parameters include a collector-emitter saturation voltage of 1.17 V (typical at 25°C for the 3-level IGBT) and a continuous DC collector current of 70 A. Thermal resistance from junction to heatsink is 0.886 K/W per 3-level IGBT. The operating temperature range spans from -40°C to +150°C.

Feature Summary

• TRENCHSTOP™ 5 technology provides low switching losses and high efficiency.
• PressFIT contact technology ensures reliable connection without soldering.
• Integrated Al2O3 substrate offers low thermal resistance for effective heat dissipation.
• Built-in NTC thermistor enables precise real-time temperature monitoring.

Applications

• Solar power inverters
• Three-level converter topologies
• Industrial motor drives

Procurement Notes

Verify component authenticity by cross-referencing the unique serial number and material code on the module label against official Infineon databases. Ensure the ordering suffix matches the specific technical configuration required for your design. Confirm compliance with industrial qualification standards such as IEC 60747 prior to integration into final equipment assemblies.

Selection Notes

Select this module for applications requiring robust 650 V isolation and efficient thermal management via PressFIT contacts. Consider the specific thermal resistance values and saturation voltages when designing the cooling system. Verify that the gate drive requirements align with the specified threshold voltages and internal gate resistor characteristics for optimal switching performance.

Part Context

This component belongs to the EasyPACK™ family of power modules designed for compact and efficient power conversion systems. It integrates advanced TRENCHSTOP™ 5 IGBT technology with emitter-controlled diodes. The module is engineered for industrial environments, offering high reliability through its ceramic substrate and press-fit termination method.

Replacement Considerations

Consult official Infineon documentation for direct pin-compatible substitutes within the EasyPACK™ series. Verify that any alternative part maintains identical voltage ratings, current capabilities, and thermal characteristics to ensure seamless integration without redesigning the mechanical or electrical layout.

FAQ

What is the maximum repetitive peak collector current for the 3-level IGBT?

The maximum repetitive peak collector current (ICRM) for the 3-level IGBT is 200 A with a pulse width of 1 ms.

Does the module include an integrated temperature sensor?

Yes, the module features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for accurate temperature monitoring.

What is the isolation test voltage rating?

The module supports an isolation test voltage (VISOL) of 3.0 kV RMS at 50 Hz for 1 minute.
