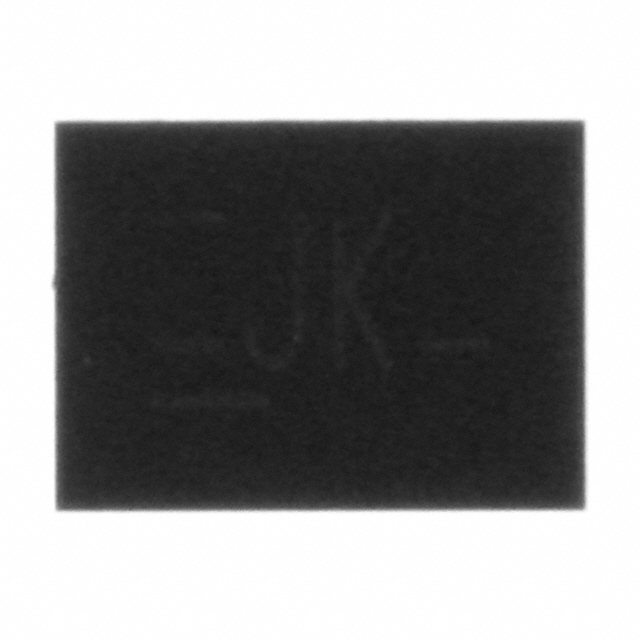

FSSD07UMX

Description：IC MULTIPLEXER 24UMLP
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)

SKU:36b43fa2e33c Category: Signal Switches, Multiplexers, Decoders Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FSSD07UMX is listed in the Signal Switches, Multiplexers, Decoders range at ChipApex. The manufacturer field lists onsemi. Its product description is IC MULTIPLEXER 24UMLP. Review the specifications below when checking this part for your BOM.

Signal Switches, Multiplexers, Decoders specifications for FSSD07UMX

Description：IC MULTIPLEXER 24UMLP
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Type：Multiplexer
Circuit：-
Independent Circuits：-
Current - Output High, Low：-
Voltage Supply Source：-
Voltage - Supply：-
Operating Temperature：-
Mounting Type：Surface Mount
Package / Case：24-UFQFN
Supplier Device Package：24-UMLP (3.4x2.5)

Signal Switches, Multiplexers, Decoders datasheet and documents for FSSD07UMX

FSSD07UMX

Signal Switches, Multiplexers, Decoders Overview

The FSSD07UMX is a dual-channel multiplexer switch IC from the FSSD07 series, manufactured by onsemi. It features a 1 x 2:1 configuration designed for SD/SDIO and MMC dual-host applications. The device operates within a supply voltage range of 1.65 V to 3.6 V and supports an operating temperature range from -40°C to +85°C. Packaged in UMLP format, it serves as a signal routing component for memory interfaces.

Signal Switches, Multiplexers, Decoders Feature Summary

Supports dual-host configurations for SD/SDIO and MMC protocols
Provides low-voltage operation compatible with modern digital logic levels
Utilizes compact surface-mount packaging for space-constrained designs

Signal Switches, Multiplexers, Decoders Applications

SD card interface switching
SDIO peripheral connection management
MMC host controller routing

Signal Switches, Multiplexers, Decoders Procurement Notes

Verify current availability status as the component may be discontinued or subject to limited distribution channels. Confirm package type and pinout compatibility during integration planning. Review official datasheets for updated handling and storage requirements specific to this part number before procurement.

Signal Switches, Multiplexers, Decoders Selection Notes

Select this component when designing systems requiring signal path selection between two hosts for single SD/MMC devices. Ensure the application voltage remains within the specified 1.65 V to 3.6 V range. Consider thermal performance and board layout constraints associated with the UMLP package geometry.

Signal Switches, Multiplexers, Decoders Part Context

This part belongs to the FSSD07 series of multiplexer switches intended for portable electronic devices. It addresses the need for flexible memory interface management in mobile platforms where multiple controllers may access shared storage resources.
