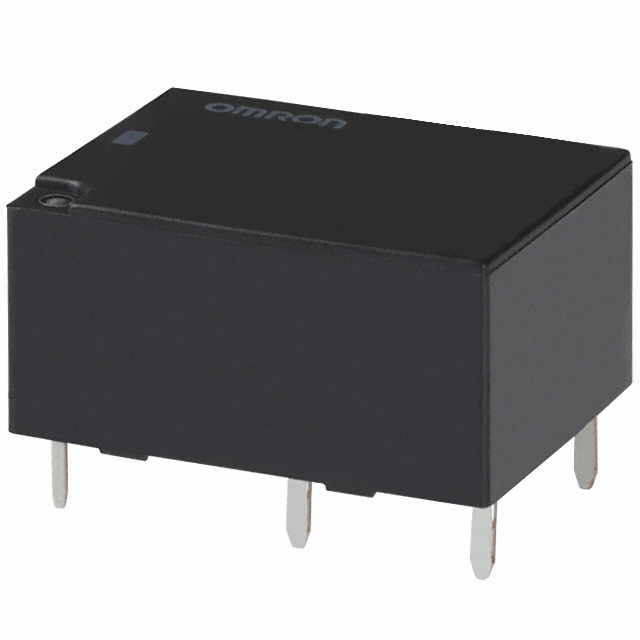

G6C-2114P-US DC3

G6C-2114P-US DC3 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is RELAY GENERAL PURPOSE DPST 8A 3V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G6C-2114P-US DC3

• Description：RELAY GENERAL PURPOSE DPST 8A 3V
• Series：G6C
• Mfr：Omron Electronics Inc-EMC Div
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：3VDC
• Contact Form：DPST-NO/NC (1 Form A, 1 Form B)
• Contact Rating (Current)：8:00 AM
• Switching Voltage：380VAC, 125VDC - Max
• Load - Max Switching：3040VA, 1000W
• Coil Current：67 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：2.1 VDC
• Must Release Voltage：0.3 VDC
• Operating Temperature：-25°C ~ 70°C
• Contact Material：Silver Alloy, Cadmium Free
• Approval Agency：CSA, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for G6C-2114P-US DC3
