GCMX040A120B2H1P

$39.57

Description：MOSFET 4N-CH 1200V 56A
Series：-

SKU:05ccc9bd3e1b Category: FET, MOSFET Arrays Brand: SemiQ

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 4N-CH 1200V 56A
Series：-
Mfr：SemiQ
Package：Tray
Technology：Silicon Carbide (SiC)
Configuration：4 N-Channel (Full Bridge)
FET Feature：-
Drain to Source Voltage (Vdss)：1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C：56A (Tc)
Rds On (Max) @ Id, Vgs：52mOhm @ 40A, 20V
Vgs(th) (Max) @ Id：4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs：121nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds：3200pF @ 800V
Power - Max：217W (Tc)
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

GCMX040A120B2H1P

Overview

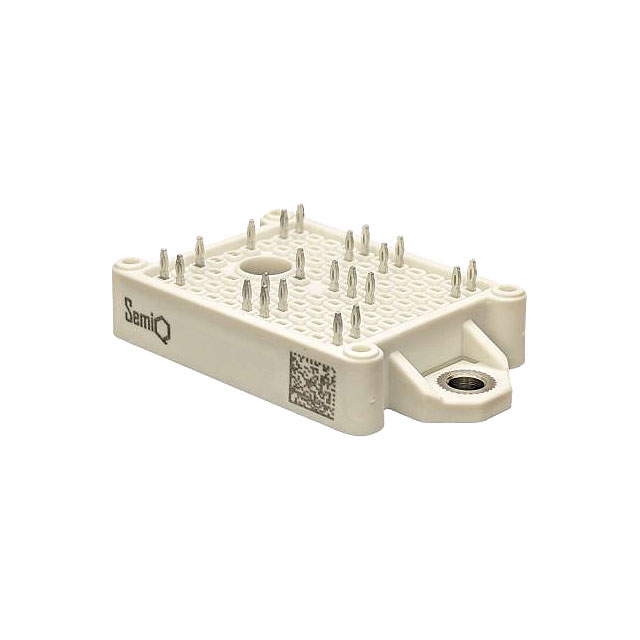

The GCMX040A120B2H1P is a silicon carbide (SiC) MOSFET module from the SemiQ GCMX series, rated for 1200V with a maximum junction temperature of 175°C. It features a ceramic press-fit through-hole package designed for high-power applications. The device offers a breakdown voltage exceeding 1400V and supports continuous current capacities up to 102A depending on thermal conditions. This component integrates N-channel technology to facilitate efficient power switching in demanding electronic environments.

Feature Summary

Utilizes a ceramic press-fit through-hole package for robust mechanical mounting
Engineered with silicon carbide technology for high-temperature operation
Designed to reduce part count and product size in high-power electronics

Applications

High-power electronic system design
Efficient cooling integration in power modules
Industrial power conversion systems

Part Context

This component belongs to the GCMX series of SiC MOSFETs, which includes various configurations such as half-bridge, full-bridge, and six-pack modules. The series is characterized by high voltage ratings and optimized thermal performance for modern power electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should verify pinout compatibility and thermal specifications when considering alternative components from other manufacturers.
