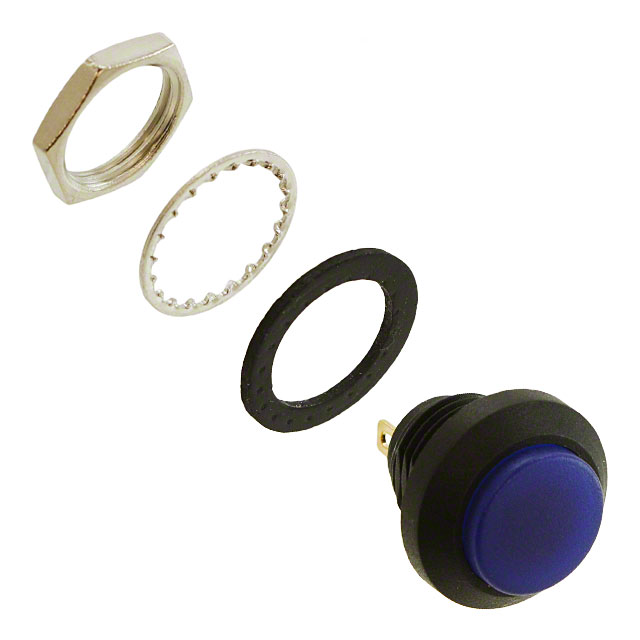

GPB556A05BU

GPB556A05BU is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CW Industries. Its product description is SWITCH PUSH SPST-NO 125MA 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for GPB556A05BU

• Description：SWITCH PUSH SPST-NO 125MA 125V
• Series：GPB
• Mfr：CW Industries
• Package：Bulk
• Mounting Type：Panel Mount, Front
• Type：Standard
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：125mA (AC), 100mA (DC)
• Actuator Type：Round, Button
• Actuator Marking：No Marking
• Color - Actuator/Cap：Blue
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Panel Cutout Dimensions：Circular - 12.00mm Dia
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：50 V
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for GPB556A05BU
