HAT2092R-EL-E

FET, MOSFET Arrays Overview

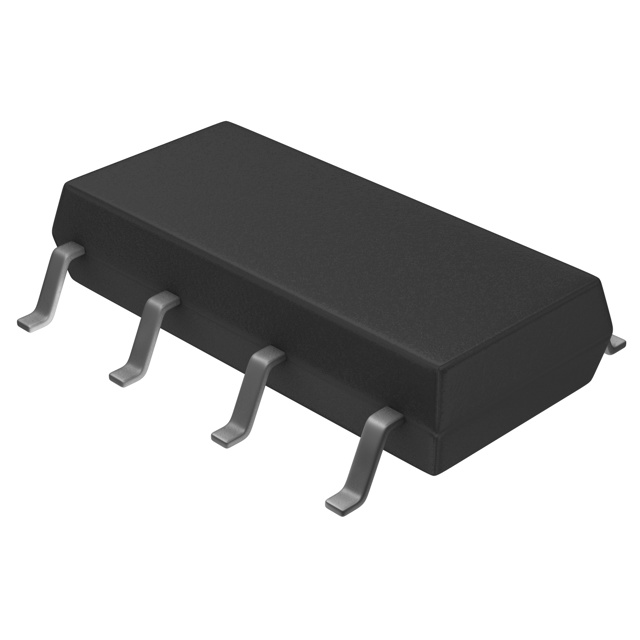

The HAT2092R-EL-E is a silicon N-channel power MOSFET manufactured by Renesas Electronics Corporation. It features an 8-SOP package and operates as a high-speed power switching device. The component is rated for a drain-source voltage of 30V and supports a continuous drain current of 11A. Typical input capacitance (Ciss) is specified at 1400 pF. This dual-channel array is designed for logic-level gate control, making it suitable for applications requiring efficient power management in compact form factors.

FET, MOSFET Arrays Feature Summary

• High-speed power switching capability utilizing silicon N-channel technology
• Dual-channel configuration within a compact 8-SOP package
• Logic-level gate behavior for direct interface with standard control circuits

FET, MOSFET Arrays Applications

• Motor control systems
• Inverter circuits
• Power supply architectures

FET, MOSFET Arrays Procurement Notes

Verify the obsolete status of this part number before initiating any procurement activities, as Renesas indicates it is no longer manufactured. Confirm availability through authorized distributors or secondary market suppliers if replacement is required. Ensure that any sourced units match the original specifications and packaging requirements to maintain system integrity.

FET, MOSFET Arrays Selection Notes

Select this component when a dual N-channel MOSFET with 30V rating and 11A current capacity is required in an 8-SOP package. Consider its logic-level gate drive characteristics for compatibility with low-voltage control signals. Evaluate thermal performance and package constraints relative to the target application's power density requirements.

FET, MOSFET Arrays Part Context

This device belongs to Renesas' series of silicon N-channel power MOSFETs designed for high-speed switching applications. It shares architectural similarities with related models such as the HAT2093R-EL-E, differing primarily in specific electrical ratings and package configurations within the same product family.

FET, MOSFET Arrays Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, engineers should consult official Renesas replacement guides or perform rigorous cross-reference analysis to identify compatible alternatives meeting identical electrical and mechanical specifications.
