HHBC24N-2R0A0219V

Common Mode Chokes Overview

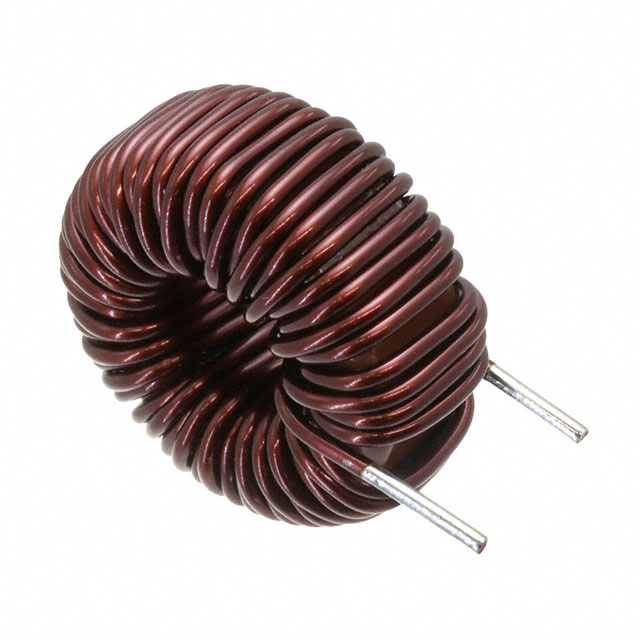

The KEMET HHBC24N-2R0A0219V is a through-hole toroidal power inductor from the HHBC series. It features a vertical orientation with no base and two PC pin terminals. The component provides an inductance of 219 µH with a tolerance of ±20%. It supports a saturation current of 15 A and has a DC resistance of 19.5 mΩ. The operating temperature range spans from -40°C to +120°C.

Common Mode Chokes Feature Summary

• Vertical leaded construction without a base for direct PCB mounting
• Toroidal core design optimized for AC line filter applications
• High current handling capability suitable for normal mode filtering

Common Mode Chokes Applications

• AC line filters
• Normal mode noise suppression
• Power supply input stages

Common Mode Chokes Procurement Notes

Verify the manufacturer part number HHBC24N-2R0A0219V against official KEMET documentation to confirm specifications. Ensure compatibility with through-hole assembly processes. Check for any specific environmental certifications or material declarations required by your manufacturing standards before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust normal mode filtering with high current capacity. The 15 A rating and low DC resistance make it suitable for power inputs where efficiency and thermal performance are critical. Ensure the PCB layout accommodates the vertical form factor and terminal spacing.

Common Mode Chokes Part Context

This inductor belongs to the KEMET HHBC series, which specializes in high-current toroidal inductors for power electronics. The series is designed for durability and consistent performance in demanding environments. The HHBC24N variant specifically targets applications needing significant magnetic energy storage with minimal resistive losses.

Common Mode Chokes Replacement Considerations

The alias UALC4N2R0A0219 may be used interchangeably depending on distributor labeling. Verify electrical parameters such as inductance, current rating, and physical dimensions against the original specification sheet before substituting.
