HMC-C038

RF Amplifiers Overview

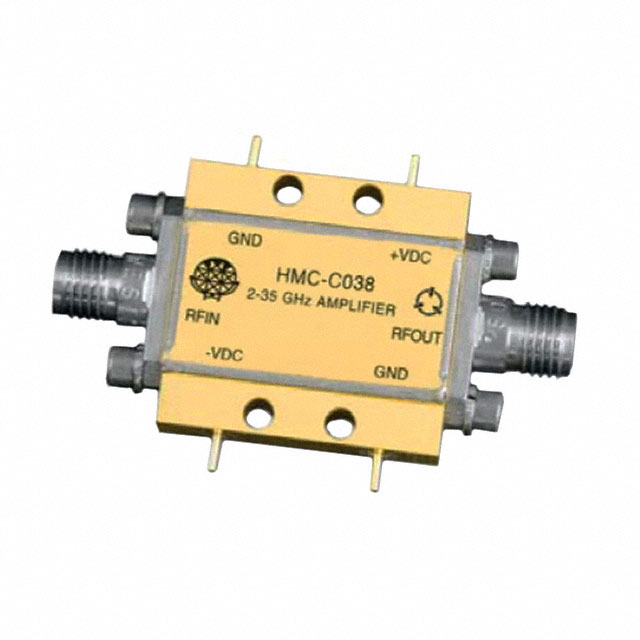

The HMC-C038 is a GaAs PHEMT MMIC distributed power amplifier housed in a miniature, hermetic module with replaceable 2.92mm connectors. It operates within a frequency range of 2 to 35 GHz. The device provides a gain of 12 dB and delivers an output power of +29 dBm. It requires an operating supply voltage of 16 V.

RF Amplifiers Feature Summary

• Integrates GaAs PHEMT MMIC technology for high-frequency performance
• Features a miniature, hermetic module construction
• Includes replaceable 2.92mm connectors for flexible integration

RF Amplifiers Applications

• VSAT communication systems
• Point-to-point microwave links
• Electronic warfare applications
• Test and measurement equipment

RF Amplifiers Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the required operating supply voltage of 16 V aligns with system power capabilities. Ensure compatibility with 2.92mm connector interfaces for seamless integration into existing RF architectures.

RF Amplifiers Selection Notes

Select this component when wideband operation from 2 to 35 GHz is required. Consider the hermetic package for environmental protection needs. Evaluate the 12 dB gain and +29 dBm output power against link budget requirements. Verify thermal management strategies suitable for the module form factor.

RF Amplifiers Part Context

This part belongs to Analog Devices' portfolio of GaAs PHEMT MMIC distributed amplifiers. It is designed for high-performance RF applications requiring broad bandwidth. The hermetic module design distinguishes it from surface-mount alternatives, offering robustness for demanding environments.

RF Amplifiers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
