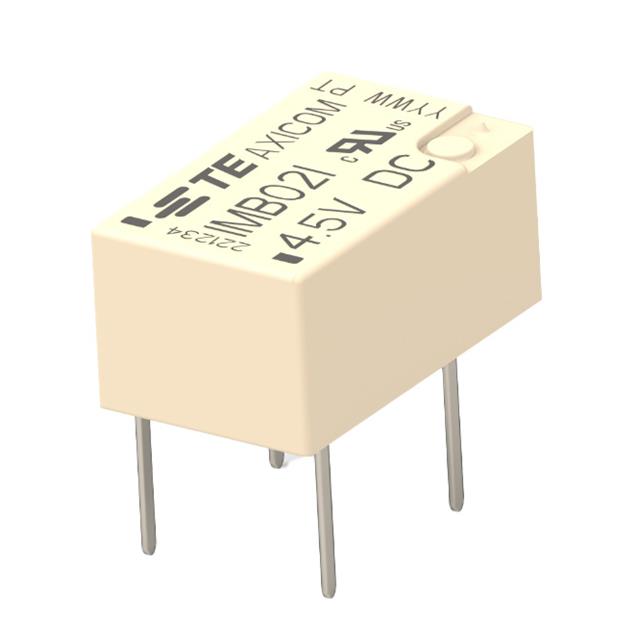

IMB02ITS

IMB02ITS is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY TELECOM SPST 2A 4.5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for IMB02ITS

• Description：RELAY TELECOM SPST 2A 4.5V
• Series：IM, AXICOM
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：4.5VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：400VDC - Max
• Load - Max Switching：500VA, 440W
• Coil Current：31 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Hermetically
• Coil Insulation：-
• Must Operate Voltage：3.38 VDC
• Must Release Voltage：0.45 VDC
• Operate Time：3 ms
• Release Time：3 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：UR
• Relay Type：Telecom
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for IMB02ITS
