IPTC044N15NM5ATMA1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is OPTIMOS 5 POWER MOSFET. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for IPTC044N15NM5ATMA1
- Description：OPTIMOS 5 POWER MOSFET
- Series：OptiMOS™ 5
- Mfr：Infineon Technologies
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：150 V
- Current - Continuous Drain (Id) @ 25°C：19.4A (Ta), 174A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：8V, 10V
- Rds On (Max) @ Id, Vgs：4.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id：4.6V @ 235µA
- Gate Charge (Qg) (Max) @ Vgs：89 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：7000 pF @ 75 V
- FET Feature：-
- Power Dissipation (Max)：3.8W (Ta), 300W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount

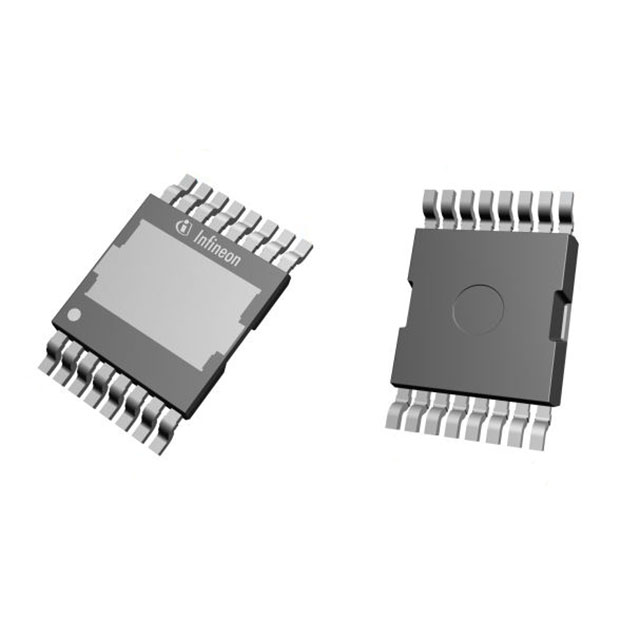

- Supplier Device Package：PG-HDSOP-16-2
- Package / Case：16-PowerSOP Module
Single FETs, MOSFETs datasheet and documents for IPTC044N15NM5ATMA1
Single FETs, MOSFETs Overview
The IPTC044N15NM5 is an OptiMOS 5 N-channel power transistor with a 150 V drain-source breakdown voltage. It features a maximum on-resistance of 4.4 mΩ and supports a continuous drain current of 174 A at 25 °C case temperature. The device operates within a junction temperature range of -55 °C to +175 °C and offers a thermal resistance from junction to case of 0.5 °C/W. Key dynamic parameters include a total gate charge of 71 nC and an output charge of 200 nC.
Single FETs, MOSFETs Feature Summary
- OptiMOS 5 technology providing very low on-resistance for high efficiency
- Superior thermal resistance characteristics for effective heat dissipation
- 100% avalanche tested to ensure robustness under transient conditions
- Fully qualified according to JEDEC standards for industrial applications
Single FETs, MOSFETs Applications
- Industrial motor drives
- Power supply circuits
- DC-DC converters
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering code matches the required package variant. Confirm that the application environment adheres to the specified industrial qualification standards. Ensure thermal management designs account for the stated junction-to-case resistance values to maintain safe operating temperatures during operation.
Single FETs, MOSFETs Selection Notes
Select this component when a 150 V rating is required alongside high current handling capabilities. Consider the PG-HDSOP-16 package dimensions for PCB layout compatibility. Evaluate the thermal performance against the system's ambient conditions and cooling strategy to ensure the junction temperature remains within the specified limits.
Single FETs, MOSFETs Part Context
This part belongs to Infineon's OptiMOS 5 family, designed for general-purpose power switching applications. It utilizes silicon technology and is housed in a surface-mount PG-HDSOP-16 package. The device is lead-free, RoHS compliant, and halogen-free, meeting strict environmental regulations for electronic components.
Single FETs, MOSFETs Replacement Considerations
Check datasheets for other OptiMOS 5 devices with similar voltage and current ratings. Verify pinout compatibility and thermal resistance specifications before substitution.
