IRF8721TRPBF-1

Description：MOSFET N-CH 30V 14A 8SO
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tape & Reel (TR)

SKU:ea0f6e7d58f1 Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IRF8721TRPBF-1 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is MOSFET N-CH 30V 14A 8SO. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for IRF8721TRPBF-1

Description：MOSFET N-CH 30V 14A 8SO
Series：HEXFET®
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：14A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：8.5mOhm @ 14A, 10V
Vgs(th) (Max) @ Id：2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs：12 nC @ 4.5 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1040 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：2.5W (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：8-SOIC

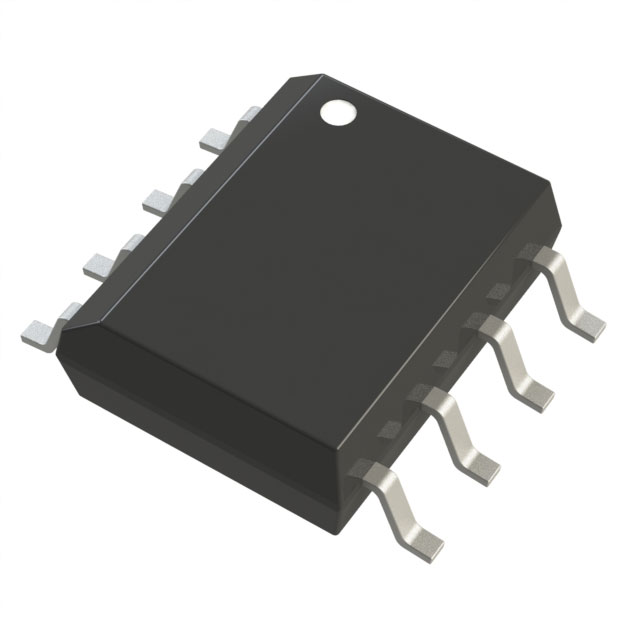

Package / Case：8-SOIC (0.154", 3.90mm Width)

Single FETs, MOSFETs datasheet and documents for IRF8721TRPBF-1

IRF8721TRPBF-1

Single FETs, MOSFETs Overview

The IRF8721TRPbF-1 is a single N-channel HEXFET power MOSFET manufactured by Infineon Technologies. It features a maximum drain-to-source voltage of 30 V and a continuous drain current of 14 A at 25°C. The device exhibits a maximum on-resistance of 8.5 mΩ at VGS = 10V and 12.5 mΩ at VGS = 4.5V. Total gate charge is typically 8.3 nC, with a gate-to-drain charge of 3.2 nC. Thermal resistance from junction to ambient is 50 °C/W, and the operating junction temperature range extends up to 150°C.

Single FETs, MOSFETs Feature Summary

Industry-standard pinout SO-8 package for multi-vendor compatibility
Compatible with existing surface mount techniques for easier manufacturing
RoHS compliant and halogen-free construction
MSL1 moisture sensitivity level with industrial qualification

Single FETs, MOSFETs Applications

Control MOSFET of Sync-Buck Converters used for Notebook Processor Power
Control MOSFET for Isolated DC-DC Converters in Networking Systems

Single FETs, MOSFETs Procurement Notes

Verify that the ordering suffix TRPbF-1 corresponds to the Tape and Reel form quantity of 4000 units as specified in the datasheet. Confirm the component meets RoHS compliance and Halogen-Free requirements. Ensure the industrial qualification level aligns with system reliability standards. Check for MSL1 classification to determine appropriate handling procedures during assembly.

Single FETs, MOSFETs Selection Notes

Select this component when a low-cost, industry-standard SO-8 footprint is required for 30V applications. The 14A continuous current rating supports moderate power levels in synchronous buck topologies. Verify that the 8.5mΩ on-resistance meets efficiency targets at the intended switching frequency and drive voltage conditions.

Single FETs, MOSFETs Part Context

This part belongs to the HEXFET family of power MOSFETs designed for general-purpose switching applications. The standard SO-8 package facilitates automated surface mount assembly processes. The device integrates an intrinsic body diode suitable for freewheeling operations in converter circuits.
