IS49NLC18160-33B

Memory IC Overview

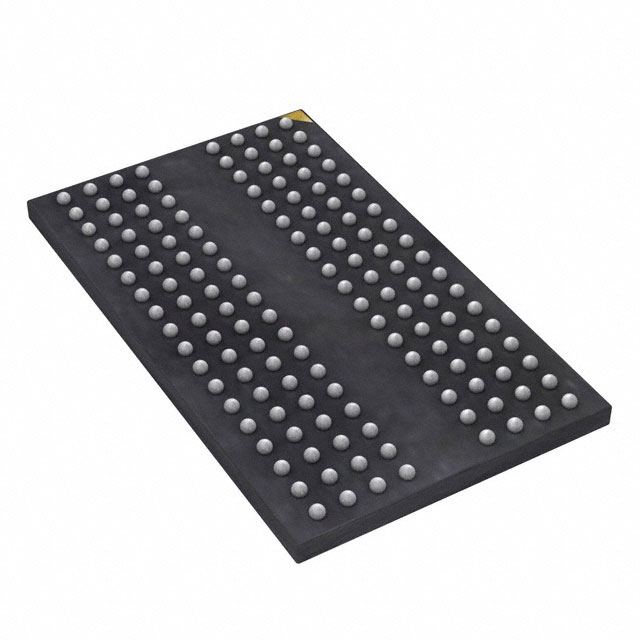

The IS49NLC18160-33B is a 288 Mbit RLDRAM II device featuring a 18-bit common I/O interface. It operates at a maximum clock frequency of 300 MHz with a supply voltage range of 1.7 V to 1.9 V. The memory organization is 16 M x 18, housed in a 144-pin FCBGA package. It supports surface mount installation and functions within an operating temperature range of 0°C to 70°C.

Memory IC Feature Summary

• Supports high-speed data transfer via RLDRAM II architecture
• Utilizes a 18-bit common I/O bus for efficient data handling
• Designed for low-power portable applications

Memory IC Applications

• High-performance embedded systems
• Portable consumer electronics
• Industrial control equipment

Memory IC Procurement Notes

Verify the specific suffix 'B' against official ISSI documentation to confirm exact electrical characteristics and pinout compatibility. Confirm that the 0°C to 70°C commercial temperature range meets system requirements. Ensure the 144-pin FCBGA footprint matches the PCB layout design before procurement.

Memory IC Selection Notes

Select this component when a 288 Mbit capacity with a 18-bit wide interface is required. The 300 MHz speed grade suits moderate-to-high bandwidth needs. Verify that the commercial temperature range and 1.8V supply voltage align with the target system's power and environmental constraints.

Memory IC Part Context

This part belongs to the IS49NLC18160 series of RLDRAM II devices from ISSI. It shares architectural similarities with variants like the -25BLI but differs in speed grade and temperature rating. The series targets applications requiring dense, fast volatile memory in compact packages.

Memory IC Replacement Considerations

Check for direct substitutes such as the IS49NLC18160-25BLI if higher speed (400 MHz) and industrial temperature ratings are acceptable. Verify pin compatibility and electrical specifications before substitution.
