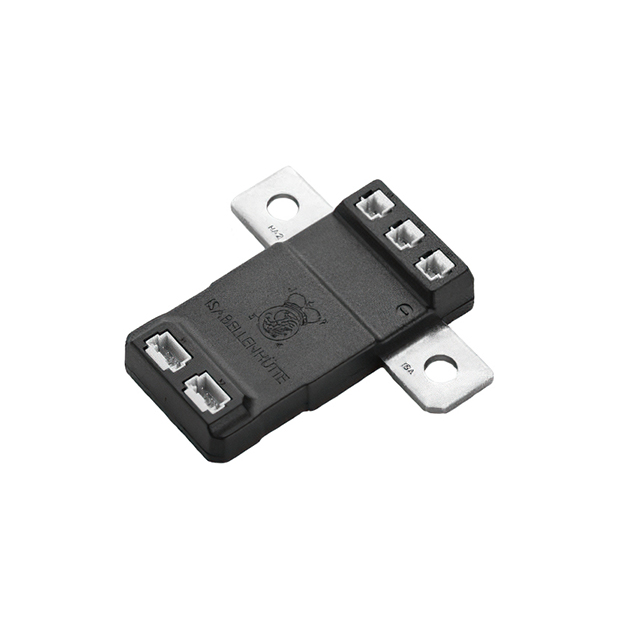

IVT-S-100-U0-I-CAN2-12/24

Current Sensors Overview

The IVT-S-100-U0-I-CAN2-12/24 is a digital current sensor from the ISA-SCALE IVT-S series. It provides bidirectional current measurement with a maximum capacity of ±100A. The device operates within an ambient temperature range of -40°C to 105°C and supports chassis mounting. Electrical supply requirements specify a maximum current consumption of 80mA. The component integrates intelligent digital processing for accurate sensing applications.

Current Sensors Feature Summary

• Intelligent digital shunt-based technology for combined current, voltage, and temperature measurements
• Bidirectional current sensing capability for versatile circuit monitoring
• Compact form factor designed for efficient chassis integration

Current Sensors Applications

• High accuracy industrial current monitoring systems
• Automotive electronic control unit testing
• Power supply management and diagnostics

Current Sensors Procurement Notes

Verify that the specific suffix CAN2-12/24 matches the required communication protocol and power supply configuration for the target system. Confirm that the ±100A rating aligns with peak load requirements. Ensure chassis mounting provisions are available in the design enclosure to accommodate the physical dimensions of the sensor module.

Current Sensors Selection Notes

Select this model when bidirectional measurement is required alongside integrated voltage and temperature sensing capabilities. The digital output simplifies interface design compared to analog shunts. Consider the 80mA supply limit when designing power distribution networks. The wide operating temperature range suits environments with significant thermal fluctuations.

Current Sensors Part Context

This part belongs to the ISA-SCALE IVT-S family, which offers up to eight simultaneous measurements from a single compact sensor unit. The series is characterized by its ability to provide precise digital data for current, voltage, and temperature parameters in demanding industrial and automotive environments.

Current Sensors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Alternative models within the IVT-S series may offer different current ranges or communication interfaces but require verification of mechanical and electrical compatibility.
