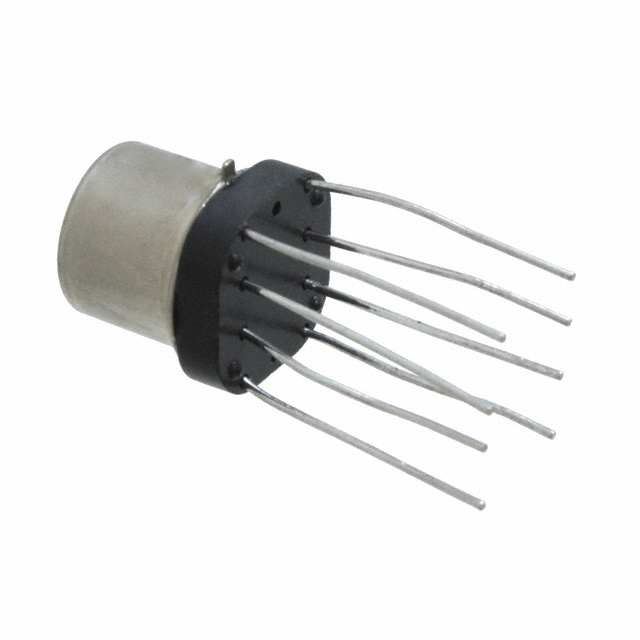

JMAC-26XMS

JMAC-26XMS is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is RELAY GEN PURPOSE DPDT 1A 26.5V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for JMAC-26XMS

• Description：RELAY GEN PURPOSE DPDT 1A 26.5V
• Series：MA, CII
• Mfr：TE Connectivity Aerospace, Defense and Marine
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：26.5VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：115VAC, 28VDC - Max
• Load - Max Switching：115VA, 28W
• Coil Current：17 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Hermetically
• Coil Insulation：-
• Must Operate Voltage：14.2 VDC
• Must Release Voltage：1.37 VDC
• Operate Time：2 ms
• Release Time：1.5 ms
• Operating Temperature：-65°C ~ 125°C
• Contact Material：Silver Palladium (AgPd), Gold (Au)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：Military
• Qualification：MIL-R-39016/9

Signal Relays, Up To 2 Amps datasheet and documents for JMAC-26XMS
