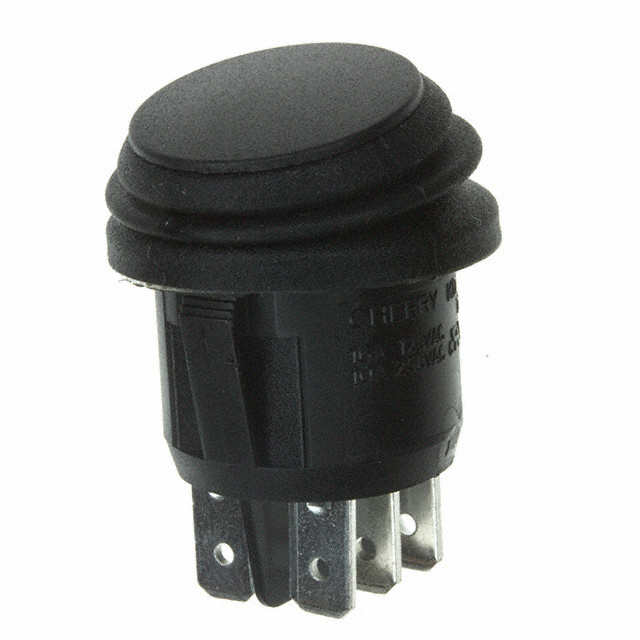

KDH3BNA1BBB

KDH3BNA1BBB is listed in the Rocker Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH ROCKER DPDT 16A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for KDH3BNA1BBB

• Description：SWITCH ROCKER DPDT 16A 125V
• Series：KD
• Mfr：ZF Electronics
• Package：Box
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPDT
• Switch Function：On-On
• Current Rating (Amps)：16A (AC), 10A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：28 V
• Actuator Type：Round
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：-
• Panel Cutout Dimensions：Circular - 20.00mm Dia
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：-
