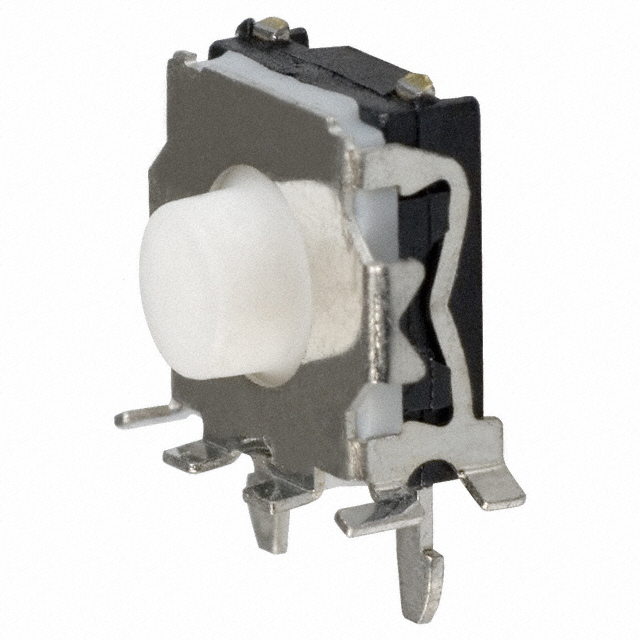

KSC421V30ACT2.95

KSC421V30ACT2.95 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 0.05A 32V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for KSC421V30ACT2.95

• Description：SWITCH TACTILE SPST-NO 0.05A 32V
• Series：KSC
• Mfr：C&K
• Package：Tape & Reel (TR)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 32VDC
• Actuator Type：Standard
• Mounting Type：Surface Mount, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：2.95mm
• Actuator Orientation：Side Actuated
• Termination Style：SMD (SMT) Tab
• Outline：7.40mm x 3.80mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：170gf
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Temperature：-40°C ~ 85°C

Tactile Switches datasheet and documents for KSC421V30ACT2.95
