KW DELSS2.CC-BXCY-4O9Q-46A8-30-R18

LED Indication - Discrete Overview

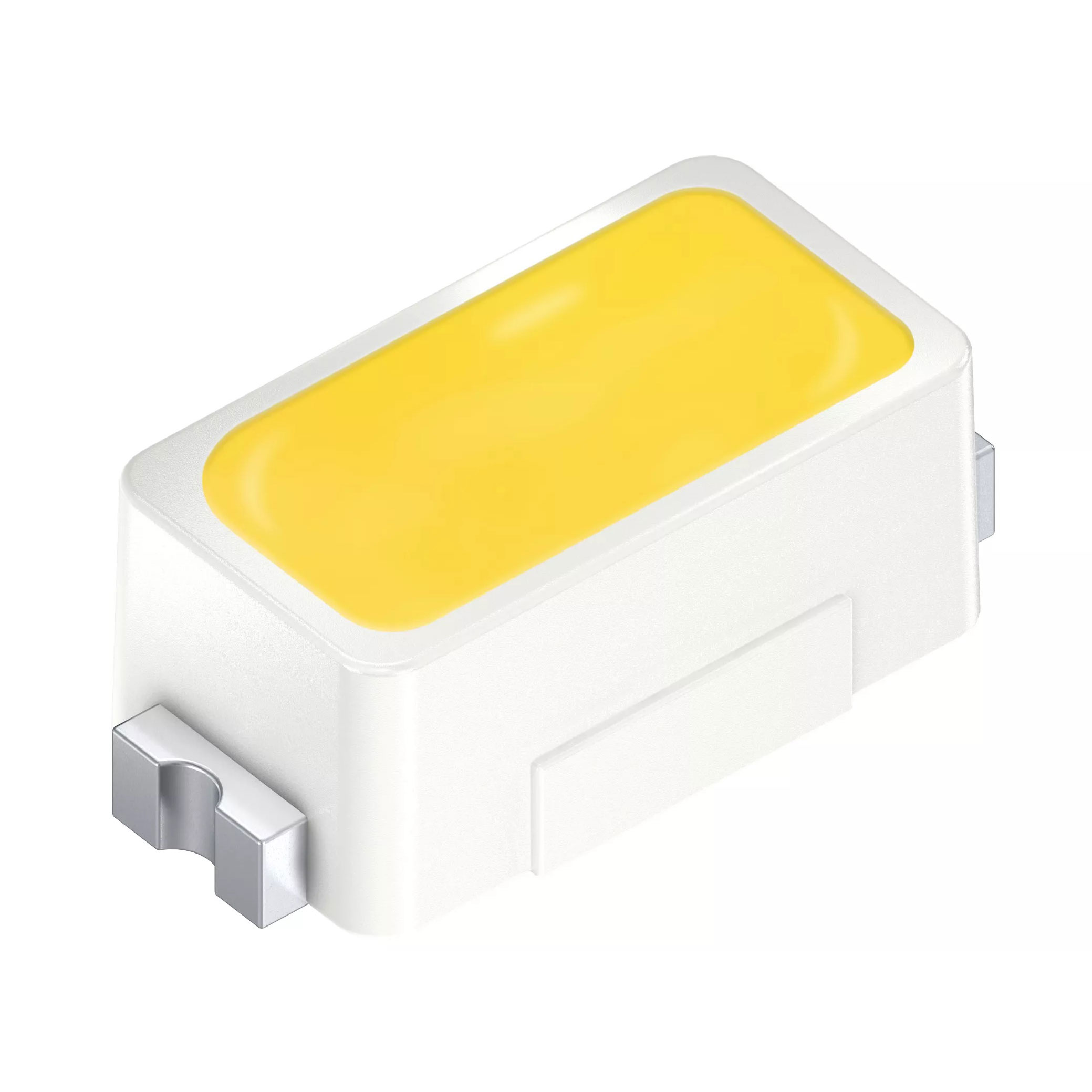

The KW DELSS2.CC-BXCY-4O9Q-46A8-30-R18 is a warm white surface-mount LED from the OSTUNE series by ams OSRAM. It features a 2-SMD flat lead package with dimensions of 1.40mm length, 0.80mm width, and a maximum height of 0.70mm. The component operates at a forward current of 30mA with a typical forward voltage of 3.25V. It provides a luminous intensity of 2850mcd and offers a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Diffused yellow lens for uniform light distribution
• Compact SMD footprint suitable for space-constrained designs
• High color rendering index for accurate color representation

LED Indication - Discrete Applications

• General indoor lighting fixtures
• Architectural accent lighting
• Commercial display illumination

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact correlated color temperature and binning requirements for your application. Ensure that the procurement channel sources genuine ams OSRAM components to guarantee adherence to RoHS3 compliance and moisture sensitivity level specifications. Cross-reference the manufacturer part number with official datasheets before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when a compact warm white light source with high brightness is required. The 120-degree viewing angle supports wide-area illumination needs. Consider the 3.25V forward voltage drop for power supply design. Verify thermal management capabilities as the device is designed for surface mount assembly processes.

LED Indication - Discrete Part Context

This part belongs to the KW DELSS2 family, which utilizes Ostune technology for consistent color performance. The series is engineered for modern electronic lighting applications requiring small form factors. It represents a standard solution within the ams OSRAM discrete LED portfolio for general illumination purposes.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other variants within the KW DELSS2 series with different color temperatures or intensities. Verify mechanical compatibility and electrical parameters before swapping. Consult the official cross-reference list for confirmed equivalent part numbers.
