LLXNH8080YBL3R6NJG

Fixed Inductors Overview

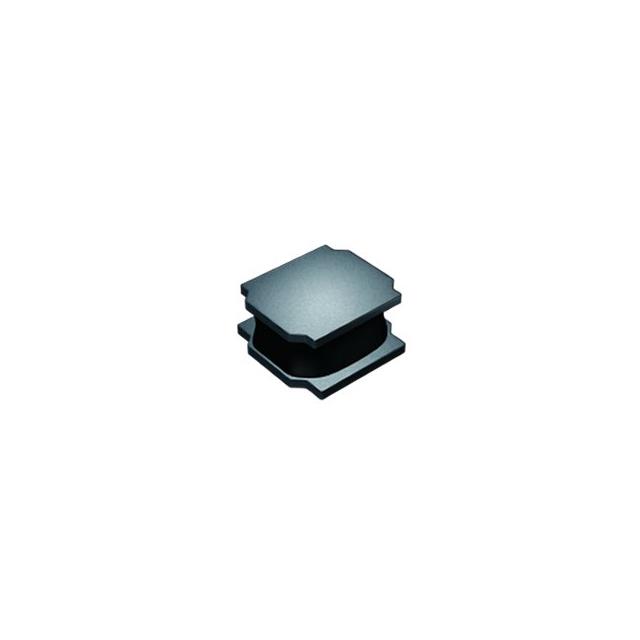

The LLXNH8080YBL3R6NJG is a surface-mount power inductor from Taiyo Yuden, featuring a ferrite core and wirewound construction. It provides an inductance of 3.6 µH with a tolerance of ±30%. The component measures 8.0 mm in length, 8.0 mm in width, and has a maximum height of 4.2 mm. It supports a maximum DC current of 4.9 A and a saturation current of 6.4 A. The DC resistance is 19.5 mΩ, with a self-resonant frequency of 34 MHz. Operating temperature ranges from -25°C to +125°C.

Fixed Inductors Feature Summary

• Semi-shielded design reduces magnetic interference while maintaining high current handling capabilities.
• Ferrite core and wirewound structure ensures stable performance under high-frequency switching conditions.
• Compact 8080 metric footprint facilitates efficient PCB layout for space-constrained applications.

Fixed Inductors Applications

• High-current power supply circuits
• DC-DC converter output filtering
• Automotive electronics systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Taiyo Yuden documentation to ensure correct packaging and specifications. Confirm that the requested part matches the exact model number required for your design. Check for any recent updates to the datasheet regarding mechanical dimensions or electrical characteristics. Ensure compatibility with your manufacturing process requirements before placing orders.

Fixed Inductors Selection Notes

Select this component when a semi-shielded inductor with high current capacity is needed in an 8080 package. Consider the 3.6 µH value and 19.5 mΩ DCR for efficiency requirements. Evaluate the saturation current of 6.4 A against peak load demands. Verify thermal performance within the -25°C to +125°C range for your operating environment.

Fixed Inductors Part Context

This part belongs to the LSXN series of power inductors by Taiyo Yuden. The series focuses on high-current applications using ferrite cores. The LLXNH8080YBL3R6NJG variant specifically targets designs requiring robust magnetic shielding and compact form factors. It complements other components in power management subsystems.

Fixed Inductors Replacement Considerations

Consult official Taiyo Yuden resources for confirmed substitute part numbers. Cross-reference electrical parameters such as inductance, current ratings, and physical dimensions. Ensure any replacement maintains the same mounting style and thermal characteristics.

Fixed Inductors FAQ

What is the maximum operating temperature for this inductor?

The maximum operating temperature is +125°C.

Is this inductor shielded?

Yes, it features a semi-shielded design.
