LM3207TL/NOPB

Voltage Regulators - DC DC Switching Regulators Overview

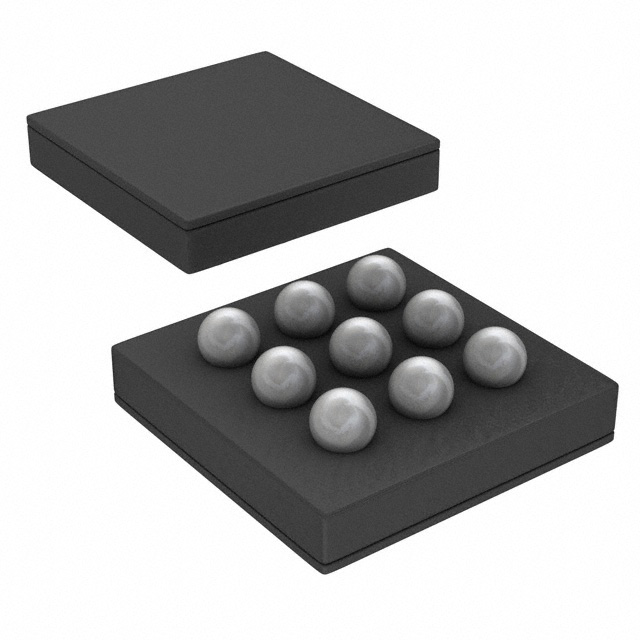

The LM3207TL/NOPB is a miniature, adjustable step-down DC-DC converter designed for RF power amplifier applications. It features an integrated voltage reference LDO and synchronous rectification. The device supports an input voltage range of 2.7V to 5.5V with a maximum output voltage of 3.6V. It delivers a continuous output current of 650mA at a fixed switching frequency of 2MHz. The component operates within a temperature range of -30°C to 85°C (TA) and is housed in a 9-WFBGA package.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated voltage reference low-dropout regulator (LDO)
• Synchronous rectification for improved efficiency
• Optimized for WCDMA/CDMA RF power amplifier supply

Voltage Regulators - DC DC Switching Regulators Applications

• WCDMA RF power amplifier supply
• CDMA RF power amplifier supply
• Portable mobile phone power management
• Handheld radio equipment

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'TL' indicates the tape and reel packaging configuration when ordering. Confirm the 'NOPB' designation ensures lead-free compliance and RoHS adherence as per Texas Instruments standards. Cross-reference the full part number against official distributor catalogs to ensure compatibility with required quantity increments and handling specifications.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for designs requiring a compact solution for RF PA biasing where space is constrained. The 2MHz switching frequency allows for smaller passive components compared to lower-frequency alternatives. Ensure the load current does not exceed 650mA and that the input voltage remains within the 2.7V to 5.5V window for stable operation.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LM3207 family of miniaturized DC-DC converters from Texas Instruments. These devices are specifically engineered to meet the stringent size and efficiency requirements of modern portable wireless communication devices. The family focuses on integrating control logic and power stages into small footprints to support high-density PCB layouts.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult official substitution guides for compatible Texas Instruments buck regulators with similar current ratings and package dimensions. Verify pin-to-pin compatibility if direct replacement is required without schematic changes.
