LNA-20-06001800-25-15P

RF Amplifiers Overview

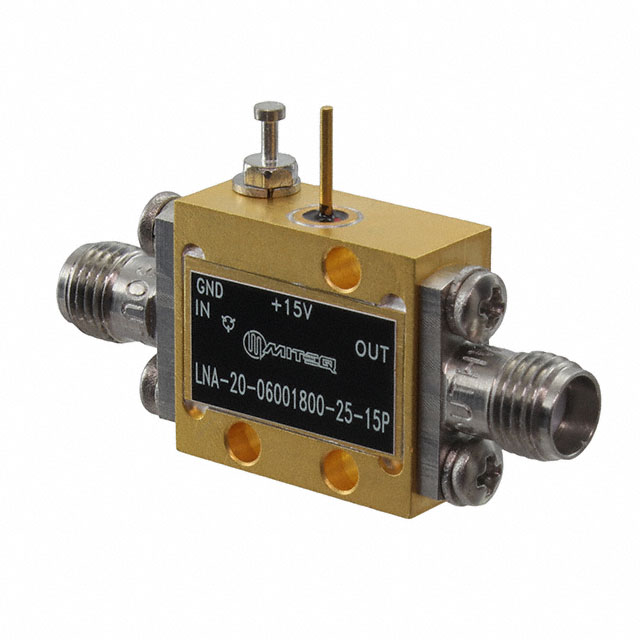

The LNA-20-06001800-25-15P is a low-noise amplifier module from the L3 Narda-MITEQ LNA series, designed for VSAT applications. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a gain of 20 dB and maintains a noise figure of 3.5 dB. Key performance metrics include a P1dB output power of 20 dBm. It requires a supply voltage of 15 V with a typical current draw of 300 mA. The unit is housed in a module package equipped with SMA connectors.

RF Amplifiers Feature Summary

• Optimized for VSAT satellite communication systems
• Wideband operation across C, X, and Ku bands
• High linearity with 20 dBm P1dB output power
• Standard 50 Ohm impedance matching

RF Amplifiers Applications

• VSAT satellite ground station receivers
• Microwave point-to-point link receivers
• Radar system front-end amplification
• Test and measurement instrumentation

RF Amplifiers Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical tolerances and connector types match your design requirements. Confirm that the 15V DC supply specifications align with your power management architecture. Check for any recent obsolescence notices or lifecycle changes directly from L3Harris Narda-MITEQ before finalizing procurement plans.

RF Amplifiers Selection Notes

Select this component when wideband coverage from 6 to 18 GHz is required alongside moderate noise figures suitable for VSAT links. Ensure the 300 mA current consumption fits within your thermal budget. Compare against lower-frequency variants if band requirements differ. Validate that the SMA connector interface is compatible with your existing RF interconnect infrastructure.

RF Amplifiers Part Context

This part belongs to the LNA-20 series of low-noise amplifiers manufactured by L3 Narda-MITEQ (now part of L3Harris). The series is characterized by ruggedized modules intended for demanding RF environments. The numbering convention typically indicates gain, frequency range, and power handling capabilities within the product family structure.
