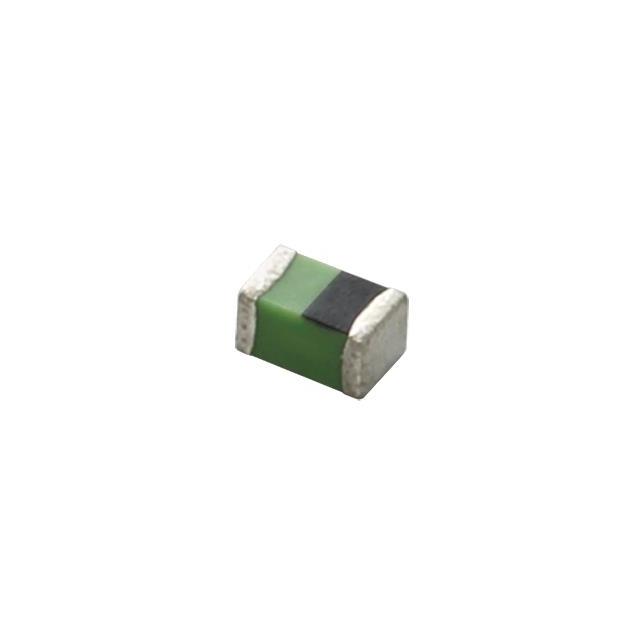

LQG15WZR11H02J

Description：FIXED IND 110NH 150MA 2.7OHM SMD
Series：LQG15
Mfr：Murata Electronics
Package：Tape & Reel (TR)

SKU:f52abc0f4141 Category: Fixed Inductors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LQG15WZR11H02J is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is FIXED IND 110NH 150MA 2.7OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LQG15WZR11H02J

Description：FIXED IND 110NH 150MA 2.7OHM SMD
Series：LQG15
Mfr：Murata Electronics
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：Air
Inductance：110 nH
Tolerance：±3%
Current Rating (Amps)：150 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：2.7Ohm Max
Q @ Freq：22 @ 250MHz
Frequency - Self Resonant：800MHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：402
Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)：0.022" (0.55mm)
Features：-

Fixed Inductors datasheet and documents for LQG15WZR11H02J

LQG15WZR11H02J

Fixed Inductors Overview

The Murata LQG15WZR11H02J is an unshielded multilayer RF inductor designed for surface-mount applications. It features a fixed inductance of 100 nH with a tolerance of ±5%. The component supports a maximum DC current of 150 mA and has a maximum DC resistance of 2.7 Ohms. It operates within a temperature range of -55°C to +125°C and meets the AEC-Q200 automotive qualification standard. The self-resonant frequency is at least 800 MHz, with a minimum Q factor of 22 tested at 250 MHz.

Fixed Inductors Feature Summary

AEC-Q200 qualified for automotive reliability requirements
Unshielded multilayer construction for high-frequency performance
Compact 0402 (1005 metric) surface-mount package

Fixed Inductors Applications

Automotive RF circuits
High-frequency filtering
Impedance matching networks

Fixed Inductors Procurement Notes

Verify the specific suffix against official documentation to confirm exact electrical tolerances and packaging options. Ensure the selected variant matches the required inductance value and current rating for the target circuit design. Cross-reference the manufacturer's latest datasheet to confirm availability and compliance status before finalizing procurement.

Fixed Inductors Selection Notes

Select this component for designs requiring robust automotive-grade inductors in compact spaces. The 100 nH value suits mid-range RF applications. Consider the 150 mA current limit and 2.7 Ohm resistance when designing power-sensitive stages. Verify that the unshielded nature does not cause interference in dense layouts.

Fixed Inductors Part Context

This part belongs to the Murata LQG15 series of chip RF inductors. The series offers various inductance values in the 0402 package. The WZR sub-series typically targets automotive markets with enhanced reliability standards. These components are widely used in mobile and automotive electronics for signal processing.
