LQW18ANR11J0ZD

Fixed Inductors Overview

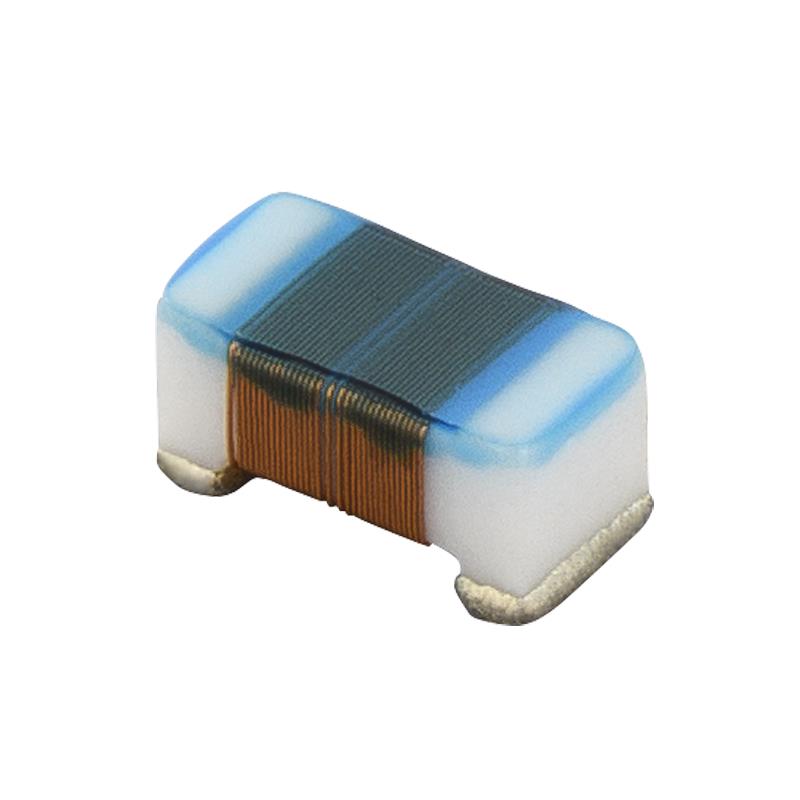

The Murata LQW18ANR11J0ZD is a surface-mount wirewound RF inductor from the LQW series, housed in a 0603 (1.6mm x 0.8mm) package. It features an inductance of 110 nH with a tolerance of ±5%. The component has a maximum DC current rating of 200 mA and a maximum DC resistance of 1.2 Ohms. It operates within a temperature range of -55°C to +125°C, with a minimum quality factor of 32 and a self-resonant frequency of 1.35 GHz.

Fixed Inductors Feature Summary

• Utilizes a ferrite core with a wirewound structure for stable RF performance.
• Encapsulated design provides mechanical protection and environmental stability.
• Optimized for high-frequency applications with controlled parasitic parameters.

Fixed Inductors Applications

• RF matching networks
• Filter circuits
• Impedance transformation stages

Fixed Inductors Procurement Notes

Verify the specific suffix J0ZD against official Murata documentation to confirm tolerance and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 0603 SMD components. Cross-reference RoHS compliance status directly with the manufacturer's latest datasheet before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a 110 nH inductance value is required in a compact 0603 footprint. Consider the 200 mA current limit and 1.2 Ohm DC resistance for power handling requirements. Evaluate the 1.35 GHz self-resonant frequency to ensure suitability for the target operating band.

Fixed Inductors Part Context

This part belongs to the Murata LQW series of unshielded RF inductors. These components are designed for general-purpose radio frequency applications where space constraints are critical. The series offers various inductance values within the same physical package dimensions to facilitate standardized PCB layouts.

Fixed Inductors Replacement Considerations

Direct substitutes include other Murata LQW18ANR11 variants with matching electrical characteristics. Verify that alternative parts maintain the same 0603 footprint and pin configuration to ensure mechanical interchangeability without PCB redesign.
