M22-2020305

Headers, Male Pins Overview

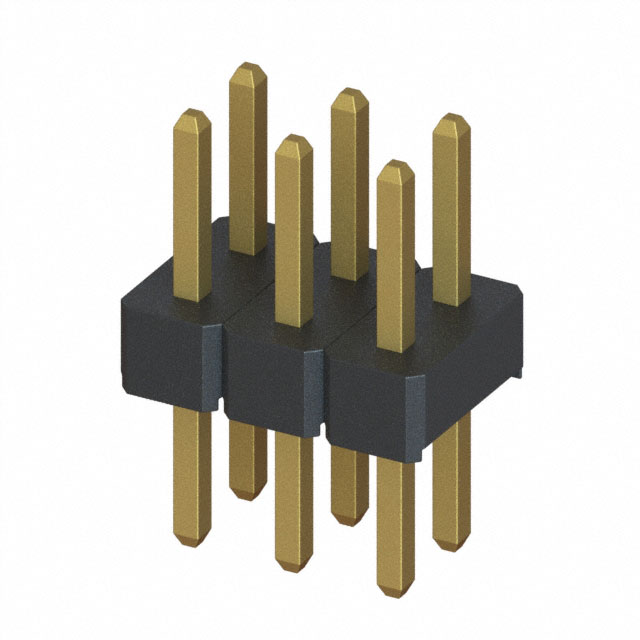

The Harwin M22-2020305 is a vertical pin header connector from the M22 series, designed for board-to-board applications. It features a 2mm pitch spacing and consists of 6 positions arranged in a dual inline (2 row) configuration. The contacts are gold-plated phosphor bronze pins with a current rating of 1A. Constructed with a nylon housing, it supports through-hole mounting and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates direct PCB insertion
• Gold-plated contacts ensure reliable conductivity
• Dual row layout maximizes connection density

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Industrial control module interfaces
• Consumer electronics internal connections

Headers, Male Pins Procurement Notes

Verify component authenticity against official Harwin documentation. Confirm RoHS compliance status and check for recent production change notices. Ensure storage conditions maintain moisture sensitivity level integrity prior to soldering.

Headers, Male Pins Selection Notes

Select this part for compact vertical stacking requirements. The 2mm pitch suits dense layouts. Gold plating offers corrosion resistance. Verify mechanical fit for the specific board thickness and mating socket compatibility.

Headers, Male Pins Part Context

Part of the M22 series, known for high-density interconnects. The M22-2020305 specifically addresses needs for small form-factor vertical connections. It complements other headers in the family by providing a standardized 6-position solution.

Headers, Male Pins Replacement Considerations

M22-2020305 is a standard active part. No specific obsolete replacement logic applies. Check for updated suffixes if packaging or plating variations are required.
