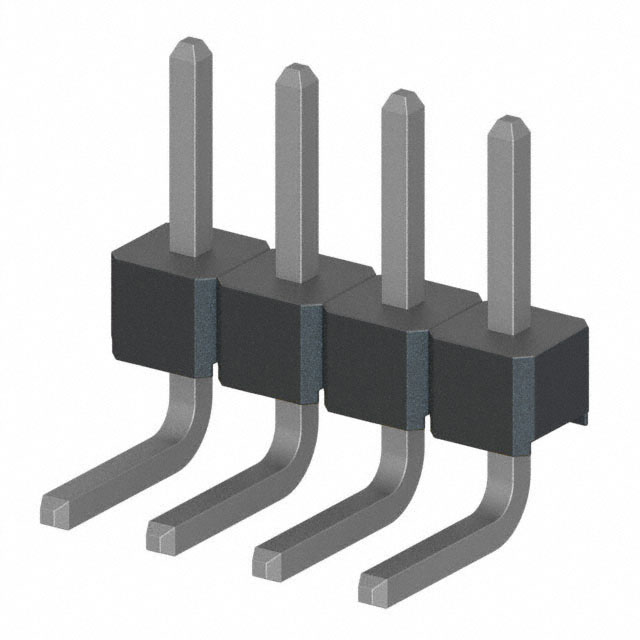

M22-2030446

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:f7207b40606a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2030446 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2030446

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2030446

M22-2030446

Headers, Male Pins Overview

The Harwin M22-2030446 is a male pin header from the M22 series, designed for board-to-board connections. It features a 4-position configuration with a 2 mm pitch and right-angle orientation. The connector utilizes phosphor bronze contacts with tin plating and nylon insulation. Rated for 1 A current and 650 VAC voltage, it operates within a temperature range of -40°C to +105°C. The component employs through-hole solder termination with a 3.5 mm tail length and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Right-angle horizontal pin header design for compact board-to-board integration
Tin-plated phosphor bronze contacts ensure reliable electrical conductivity
Nylon housing provides UL 94 V-0 rated insulation and structural stability

Headers, Male Pins Applications

Board-to-board interconnects in industrial control systems
Signal routing in automotive electronic modules
Compact circuit assembly in consumer electronics devices

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm compatibility with mating housings. Ensure that the tin plating specification aligns with your application's corrosion resistance requirements. Cross-reference the right-angle orientation and 2 mm pitch dimensions with your PCB layout constraints before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle male header is required for dense board stacking. The 2 mm pitch accommodates standard trace spacing while maintaining robust mechanical retention. Consider the tin contact finish for general-purpose applications where gold plating is not strictly necessary for signal integrity.

Headers, Male Pins Part Context

This part belongs to the M22 series, a family of connectors known for their high-density capabilities and reliability in harsh environments. The series offers various configurations including single and double rows with different orientations. The M22-2030446 specifically addresses needs for small-footprint, right-angle connections in space-constrained designs.
