M22-2040705

Headers, Male Pins Overview

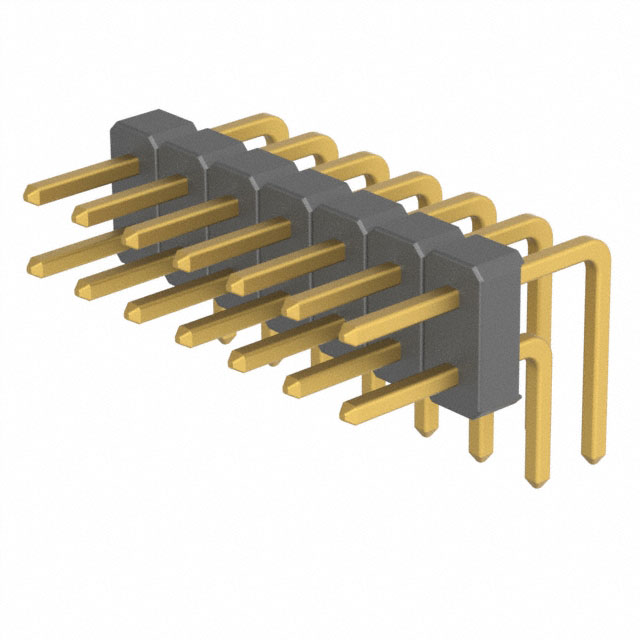

The Harwin M22-2040705 is a 14-position (7+7) double in-line header connector from the M22 series. It features a 2mm pitch and right-angle orientation for board-to-board applications. The component utilizes phosphor bronze contacts with gold plating, housed in a black nylon body rated UL94 V-0. Designed for through-hole mounting, it supports a current rating of 1A per contact and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board-to-board interconnections
• Gold-plated phosphor bronze contacts ensure reliable electrical performance
• Nylon housing provides UL94 V-0 flame retardancy

Headers, Male Pins Applications

• Board-to-board connections
• High-density PCB assemblies
• Industrial electronic modules

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the right-angle orientation matches the mechanical layout constraints. Ensure the through-hole termination type aligns with the manufacturing process capabilities. Cross-reference the official datasheet for precise dimensional tolerances and mating partner specifications.

Headers, Male Pins Selection Notes

Select this model when a low-profile, right-angle connection is required for space-constrained designs. The 2mm pitch offers a balance between density and ease of assembly. Consider the 1A current rating for signal or low-power data lines. Verify compatibility with corresponding M22 series sockets for proper mating.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which focuses on high-reliability interconnects for demanding environments. The series is characterized by its robust construction and consistent performance across various industrial applications. It complements other M22 headers and sockets to form complete connector systems.

Headers, Male Pins Replacement Considerations

M22-2040805 is a similar 16-position variant within the same series. Direct substitutes require matching the 2mm pitch, right-angle orientation, and through-hole mounting style. Verify electrical ratings and housing material compatibility before substitution.
