M22-2200746

Headers, Male Pins Overview

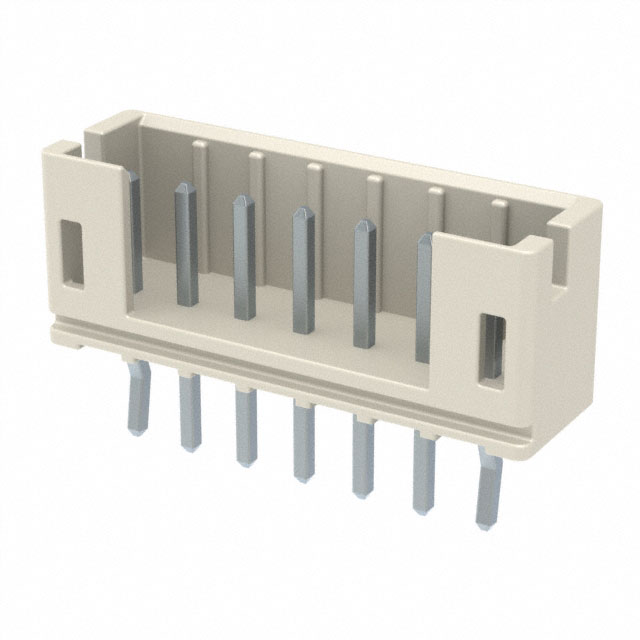

The Harwin M22-2200746 is a vertical pin header connector from the M22 series, designed for board-to-board applications. It features a 2.00 mm pitch and provides 7 positions in a single row configuration. The component utilizes through-hole termination for secure PCB mounting. Electrical ratings include a current capacity of 1A per contact and a voltage rating of 500V. The operating temperature range spans from -40°C to +105°C. The housing is constructed from nylon with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze and feature tin plating.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates standard PCB stacking configurations.
• Tin-plated phosphor bronze contacts ensure reliable conductivity.
• Nylon housing meets UL94 V-0 safety standards.

Headers, Male Pins Applications

• Embedded PC systems
• Motherboard interconnections
• Large electronic system assemblies

Headers, Male Pins Procurement Notes

Verify part availability status as this specific model may be discontinued or end-of-life. Confirm that tin-plated contacts meet environmental requirements if lead-free compliance is mandatory. Ensure mechanical fit within the designated assembly space before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is required. The 2mm pitch suits high-density layouts. Tin plating offers cost efficiency compared to gold. Verify mating connector compatibility within the M22 family for proper engagement.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, an industrial standard line featuring 2mm spacing. The series supports various row counts and termination styles, widely adopted in embedded computing and communication equipment for its compact design and reliability.

Headers, Male Pins Replacement Considerations

M22-2200746 appears to be obsolete. Check for direct equivalents in the M22 series with identical pin count and pitch. Verify that any substitute maintains the same vertical orientation and tin plating specifications.
