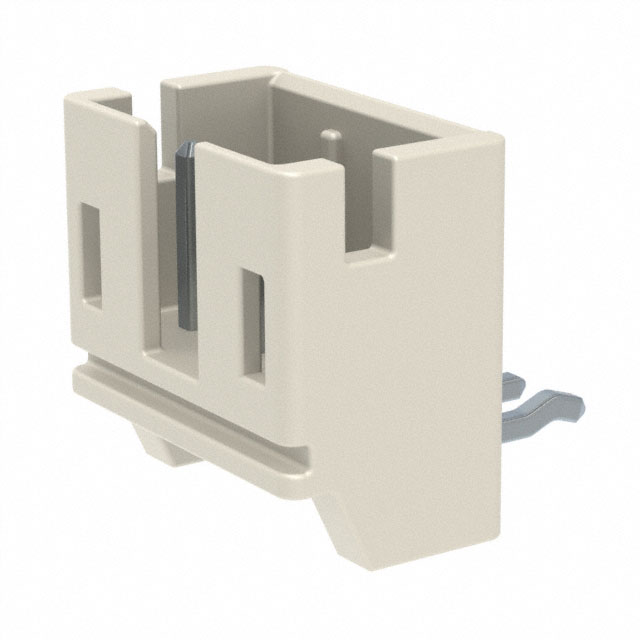

M22-2210346

Description：CONN HEADER R/A 3POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube

SKU:26fd3810ed41 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2210346 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 3POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2210346

Description：CONN HEADER R/A 3POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Kinked Pin, Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：-
Insulation Height：0.195" (4.95mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-25°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：2A per Contact
Voltage Rating：100V

Headers, Male Pins datasheet and documents for M22-2210346

M22-2210346

Headers, Male Pins Overview

The M22-2210346 is a rectangular header connector from the Harwin M22 series, designed for surface-mount applications. It features a right-angle configuration with three positions arranged in a single row. The connector utilizes a 2 mm (0.079 inch) pitch between contacts. The housing is constructed from black polyamide material, rated UL94 V-0 for flammability. Electrical contacts are made of phosphor bronze with a gold plating finish to ensure reliable conductivity and corrosion resistance. The component is intended for board-to-board or cable connections.

Headers, Male Pins Feature Summary

Right-angle surface-mount design for compact PCB integration
Gold-plated phosphor bronze contacts for durable signal transmission
UL94 V-0 rated black polyamide insulation for safety compliance

Headers, Male Pins Applications

Compact electronic device interconnects
Board-to-board signal routing
Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify current availability status as this part number is listed as obsolete by the manufacturer. Confirm if replacement components are available through official channels. Ensure compatibility with existing PCB footprints and mating connectors before procurement planning. Check for any end-of-life notifications or transition guides provided by Harwin Inc. for legacy product support.

Headers, Male Pins Selection Notes

Select this component only if the specific right-angle, 3-position, 2mm pitch form factor is required. Consider that the part is obsolete; evaluate alternative M22 series headers with similar electrical and mechanical specifications. Verify that the gold contact plating meets the application's wear and conductivity requirements. Assess space constraints on the PCB to accommodate the right-angle profile.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, known for high-density interconnect solutions. The series offers various configurations including straight and right-angle headers in single and double rows. The M22-2210346 specifically addresses needs for low-profile, right-angle connections with reliable gold-contact performance in small form-factor designs.
