M22-2510905

Headers, Male Pins Overview

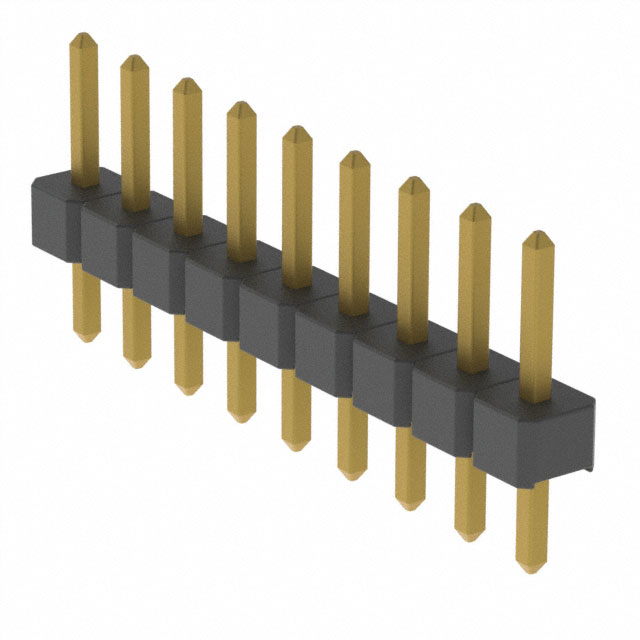

The M22-2510905 is a rectangular connector header from the Harwin M22 series, designed for through-hole mounting. It features a single row of nine male pin contacts with a 2.00 mm pitch. The connector utilizes phosphor bronze contacts with gold plating and a black PA6T insulation body rated UL94 V-0. It supports a maximum current of 1A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Through-hole right-angle or straight mounting options available in the series
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• PA6T insulation material provides high thermal stability and flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment internal wiring
• Industrial control system modules

Headers, Male Pins Procurement Notes

Verify the specific orientation (straight vs. right-angle) as the base part number may refer to a family; confirm the exact suffix matches the required mechanical configuration. Ensure compatibility with mating sockets from the same M22 series. Check RoHS3 compliance status for environmental regulations. Confirm lead times with authorized distributors as standard delivery periods may vary.

Headers, Male Pins Selection Notes

Select this component when a 9-position, 2mm pitch header is required for PCB assembly. Consider the M22 series for its compact design and robust mechanical locking. Evaluate current ratings against application loads, noting the 1A limit per contact. Verify that the through-hole footprint aligns with the PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, known for 2.00 mm pitch connectors. The series offers various configurations including headers, sockets, and wire housings. The M22-2510905 specifically denotes a 9-position header variant, providing a standardized solution for dense circuit board connections.

Headers, Male Pins Replacement Considerations

Direct substitutes include other M22 series headers with identical pin counts and pitch. Cross-reference with Harwin part numbers ending in similar suffixes for orientation differences. Generic 2mm pitch headers may fit mechanically but lack verified electrical and material specifications.
