M22-2531705

Headers, Male Pins Overview

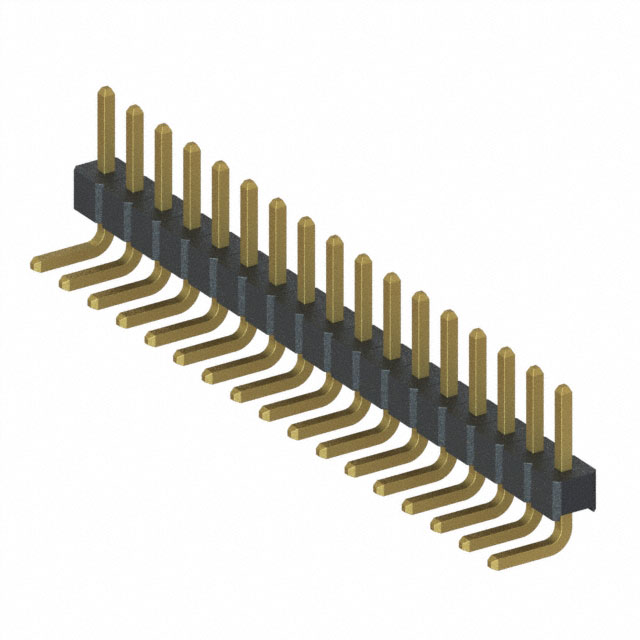

The M22-2531705 is a horizontal pin header from the Harwin M22 series, featuring 17 positions with a 2.0 mm pitch. It is designed for through-hole mounting on printed circuit boards and utilizes tin plating on the contacts to ensure reliable electrical connections. This component belongs to the broader M22 connector family, which provides high-density interconnect solutions for various electronic applications requiring robust signal transmission.

Headers, Male Pins Feature Summary

• Horizontal orientation for low-profile board integration
• Tin-plated contacts for corrosion resistance
• Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

• General-purpose electronic assemblies
• Industrial control systems
• Consumer electronics devices

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status, as obsolescence notifications may apply. Ensure compatibility with mating sockets within the same M22 series family. Cross-reference technical specifications such as pitch and contact count before finalizing procurement orders to prevent integration errors.

Headers, Male Pins Selection Notes

Select this component when a 17-position horizontal header is required for space-constrained designs. The 2.0 mm pitch allows for moderate density without sacrificing mechanical stability. Consider the tin plating finish for environments where gold plating is not strictly necessary, balancing cost and performance for standard signal applications.

Headers, Male Pins Part Context

This part is a member of the M22 connector system by Harwin Inc., known for its versatility in board-to-board and wire-to-board connections. The M22 series offers multiple configurations including vertical and horizontal headers, ensuring designers can choose the optimal form factor for their specific layout requirements while maintaining consistent electrical characteristics.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific obsolete item. Designers should evaluate equivalent 17-position, 2.0 mm pitch horizontal headers from other manufacturers or alternative Harwin series if available, ensuring mechanical and electrical parameters match the original design intent.
