M22-2580505

Headers, Male Pins Overview

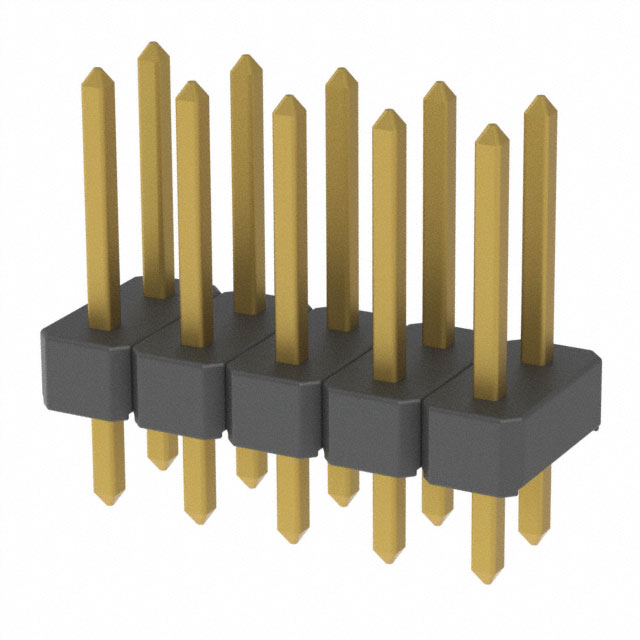

The M22-2580505 is a male pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2.00mm (0.079") pitch with 10 contacts arranged in a double-row configuration. The connector utilizes through-hole termination and is available in a straight orientation. Key electrical specifications include a rated voltage of 500V and a current rating of 2A. The housing is constructed from black PA6T insulation with UL94 V-0 flammability ratings, operating within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Double-row design providing compact connectivity for high-density applications
• Through-hole termination ensures secure mechanical mounting on printed circuit boards
• Gold-plated contact surfaces offer reliable signal transmission and corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Signal routing in automotive electronic modules
• Connections in consumer electronics requiring robust vertical stacking

Headers, Male Pins Procurement Notes

Verify the specific orientation and row configuration against project requirements before ordering. Confirm that the supplier provides original manufacturer documentation to ensure authenticity. Check for any recent obsolescence notices or lifecycle changes directly from Harwin Inc., as component availability may vary by region.

Headers, Male Pins Selection Notes

Select this model when a double-row, straight header with a 2.00mm pitch is required. Ensure the mating connector matches the 5mm pin length specification. Consider the 500V rating and 2A current capacity for load requirements. Verify PCB space constraints accommodate the double-row footprint and through-hole tail dimensions.

Headers, Male Pins Part Context

This component belongs to the M22 series, a family of micro-connectors known for their small form factor and reliability. The M22 series supports various configurations including single and double rows with different pitches. This specific part represents a standard straight header variant suitable for general-purpose high-reliability interconnects.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Users should consult Harwin Inc. directly for cross-reference recommendations or equivalent series components if this specific part number is unavailable.
