M22-5330705

Headers, Male Pins Overview

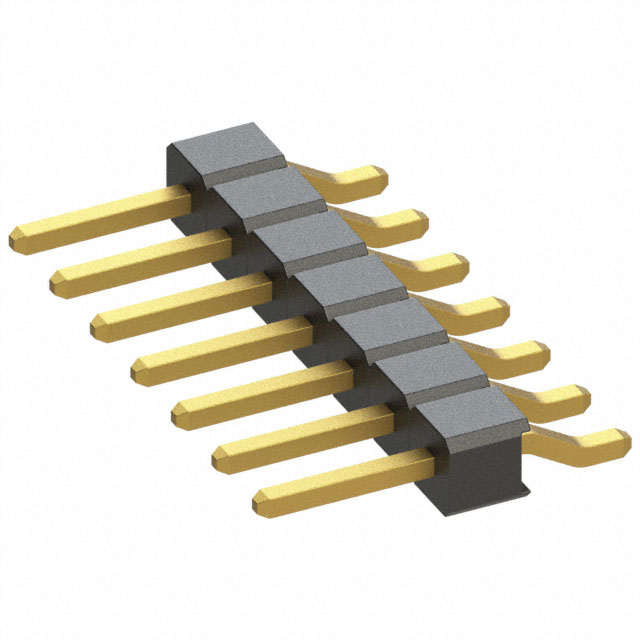

The Harwin M22-5330705 is a 7-position rectangular header connector from the M22 series, designed for board-to-board or cable connection applications. It features a 0.079-inch (2.00mm) pitch and utilizes surface mount right-angle termination. The connector employs male pin contacts with gold plating on phosphor bronze material, housed in a black nylon insulation rated UL94 V-0. It supports a working temperature range of -40°C to 105°C and offers a mating contact length of 0.197 inches (5.00mm).

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates compact PCB integration.
• Gold-plated phosphor bronze contacts ensure reliable electrical performance.
• Nylon insulation provides high thermal stability and flame resistance.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable connections
• Compact electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm surface mount orientation and position count. Ensure compatibility with mating receptacles within the M22 series. Check RoHS compliance status and moisture sensitivity levels prior to assembly. Confirm that the right-angle configuration aligns with the mechanical layout requirements of the target printed circuit board.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface mount solution is required for dense circuit layouts. The 2.00mm pitch allows for moderate pin density while maintaining robust mechanical stability. Consider the operating temperature range and UL94 V-0 rating for environments requiring thermal resilience. Verify that the housing color and contact finish meet the aesthetic and conductivity specifications of the system.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, which offers various configurations including through-hole and surface mount options. The series is characterized by its 2.00mm pitch and suitability for industrial and consumer electronics. The M22-5330705 specifically addresses needs for right-angle mounting, distinguishing it from standard vertical headers in the same family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other M22 series headers with matching 7-position counts and surface mount right-angle termination. Ensure any replacement maintains the 2.00mm pitch and compatible contact materials. Verify that the alternative part shares the same UL94 V-0 insulation rating and operating temperature range for direct interchangeability.
