M50-3200645

Headers, Receptacles, Female Sockets Overview

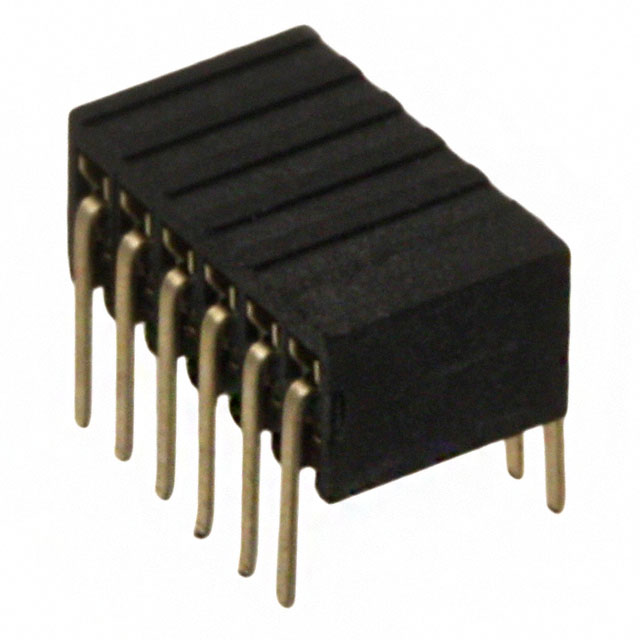

The Harwin M50-3200645 is a 12-position PCB receptacle connector from the Archer M50 series. It features a 0.050 inch (1.27mm) pitch with two rows of female sockets. Designed for right-angle through-hole mounting, it utilizes phosphor bronze contacts with gold plating. The unit operates within a temperature range of -40°C to 105°C and supports a rated current of 1A. The housing is black polyamide (PA9T) with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull latching mechanism ensures secure board-to-board connection
• Right-angle orientation facilitates compact vertical circuit board integration
• Gold-plated square phosphor bronze contacts provide reliable signal transmission

Headers, Receptacles, Female Sockets Applications

• Medical equipment interconnects
• Telecommunications hardware
• General industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating headers regarding height and latch type. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle socket is required for dense board layouts. The 1.27mm pitch suits applications needing high I/O density in limited space. Verify that the 1A current rating meets system power requirements and that the operating temperature range aligns with environmental conditions.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M50 family, characterized by its 1.27mm pitch and diverse mating height options. The series offers various configurations including single and double in-line styles. It is engineered for robust performance in demanding electronic environments requiring reliable mechanical and electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 12-pin count, 1.27mm pitch, right-angle through-hole format, and push-pull latch. Verify contact material and plating thickness equivalents. Cross-reference with other Harwin M50 variants or industry-standard connectors ensuring identical mechanical footprint and electrical ratings.
