M50-3610542R

$1.41

Description：CONN HEADER SMD 10POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d2ed478a4aca Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3610542R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 10POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3610542R

Description：CONN HEADER SMD 10POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Thermoplastic
Features：Board Guide, Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for M50-3610542R

M50-3610542R

Headers, Male Pins Overview

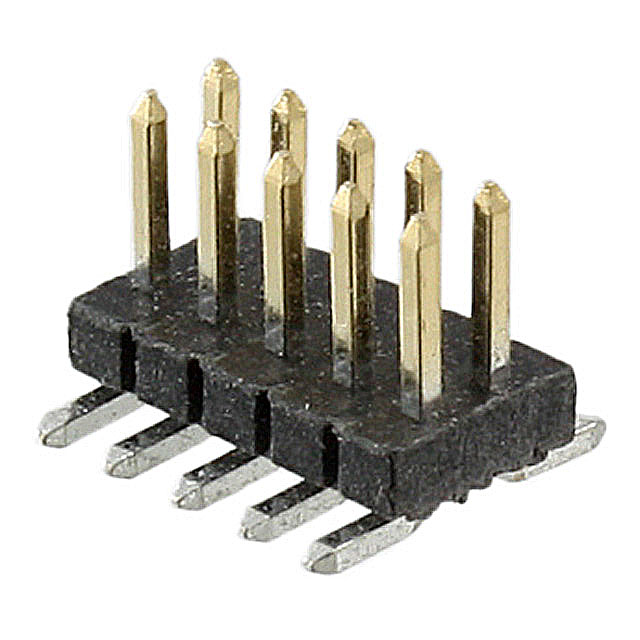

The Harwin M50-3610542R is a surface mount pin header from the Archer M50 series, featuring a 1.27mm pitch and 10 positions in a dual inline (DIL) configuration. It utilizes square male pins with selective gold plating on mating surfaces and tin on posts. Rated for 250V and 1A, it operates within a -55°C to 105°C range. The connector employs push-pull latching and includes location pegs for precise PCB alignment.

Headers, Male Pins Feature Summary

Dual inline design with selective gold and tin contact finishes
Push-pull latching mechanism for secure board-to-board connection
Integrated location pegs for accurate surface mount positioning

Headers, Male Pins Applications

Board-to-board interconnects requiring low profile
High-density electronic assemblies
Automotive control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' corresponds to tape-and-reel packaging when sourcing. Confirm that the selected variant matches the required 10-position DIL configuration and voltage ratings. Ensure compatibility with automated pick-and-place equipment due to the SMT mounting style.

Headers, Male Pins Selection Notes

Select this component for applications demanding reliable connections in space-constrained environments. The 1.27mm pitch supports high-density layouts while maintaining robust electrical performance. Consider the thermal operating range and UL94 V-0 rating for environmental resilience.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 family of fine-pitch connectors. The series offers various mating heights and configurations, providing flexibility for diverse industrial and consumer electronics applications. The M50 line is designed for high reliability and automated assembly processes.
