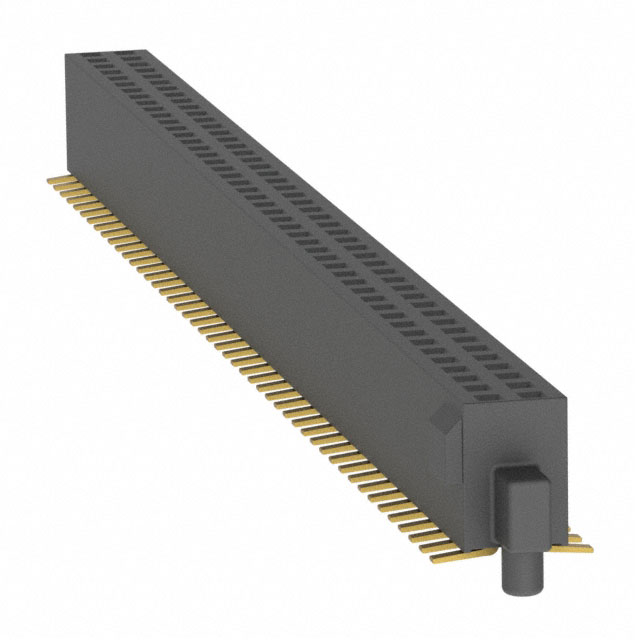

M50-4304745

Description：CONN RCPT 94POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:9e30691a408f Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4304745 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 94POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-4304745

Description：CONN RCPT 94POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：94
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.181" (4.60mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：6mm, 6.5mm
Ingress Protection：-
Features：Board Guide
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-4304745

M50-4304745

Headers, Receptacles, Female Sockets Overview

The Harwin M50-4304745 is a board-to-board receptacle connector from the Archer M50 series. It features a dual-row configuration with 48 positions and a 1.27mm pitch. Designed for surface-mount technology (SMT), it utilizes gold-plated phosphor bronze contacts housed in black liquid crystal polymer (LCP). The connector supports a voltage rating of 1kV and operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

Edge-type design with shrouded structure for precise alignment
Gold-plated contacts ensure reliable signal transmission
High-voltage insulation capability up to 1kV
RoHS compliant construction for environmental safety

Headers, Receptacles, Female Sockets Applications

High-density electronic assemblies requiring vertical mating
Industrial control systems with high-voltage isolation needs
Medical equipment utilizing compact board-to-board connections
Automotive electronics demanding robust SMT interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified agents. Confirm RoHS compliance status and specific packaging details prior to order placement. Ensure storage conditions adhere to moisture sensitivity level requirements to maintain solderability and performance integrity throughout the supply chain.

Headers, Receptacles, Female Sockets Selection Notes

Select this model for applications necessitating high-voltage isolation between adjacent circuit boards. The edge-type architecture facilitates compact stacking designs where space efficiency is critical. Verify that the mating header matches the 1.27mm pitch and dual-row specifications to ensure proper mechanical engagement and electrical continuity.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Archer M50 series, characterized by high-density interconnect solutions. The series offers various pin counts and configurations tailored for modern electronic manufacturing. The M50-4304745 specifically addresses needs for robust, high-reliability connections in constrained spaces.
