M50-4700645

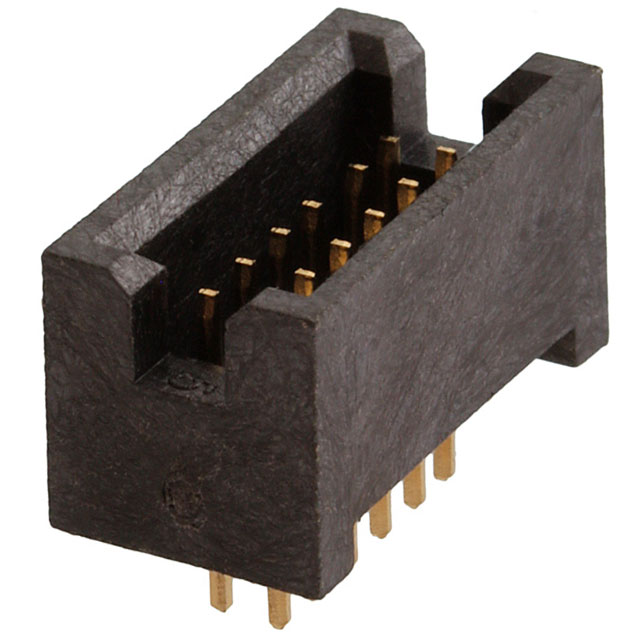

Description：CONN HEADER VERT 12POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:9205f0d29dac Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4700645 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 12POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4700645

Description：CONN HEADER VERT 12POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4700645

M50-4700645

Headers, Male Pins Overview

The Harwin M50-4700645 is a shrouded header from the ARCHER series, designed for board-to-board and wire-to-board connections. It features a 1.27 mm (0.05 in) pitch with a 2-row configuration and 12 positions. The connector utilizes gold-plated brass contacts rated for 1 A current and 300 V voltage. It employs a solder pin termination type with a right-angle installation orientation. The unit weighs 483 mg.

Headers, Male Pins Feature Summary

Shrouded design provides mechanical protection and alignment
Gold-plated contacts ensure reliable conductivity
Right-angle mounting facilitates compact PCB layouts

Headers, Male Pins Applications

Board-to-board interconnects
Wire-to-board connections
Industrial electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability and compliance status. Check for any recent product change notifications or end-of-life notices associated with the M50 series before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a right-angle, shrouded header with a 1.27 mm pitch is required. Ensure the mating connector matches the 12-position, 2-row specification and that the PCB layout accommodates the right-angle footprint and solder pin termination style.

Headers, Male Pins Part Context

This component belongs to the Harwin ARCHER M50 series, which offers robust interconnect solutions. The series includes various configurations for different mounting styles and contact counts, catering to diverse industrial and commercial electronics applications requiring high reliability.
