M50-4800845

Headers, Male Pins Overview

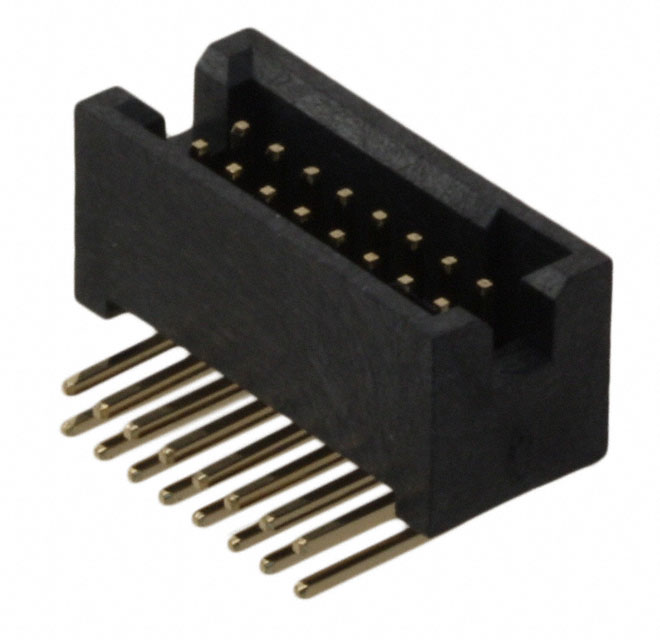

The Harwin M50-4800845 is a 16-position dual in-line header from the Archer M50 series, featuring a 1.27 mm pitch and right-angle orientation. It utilizes gold-plated phosphor bronze contacts with a 1 A current rating and 300 V voltage rating. The housing is black liquid crystal polymer (LCP) rated UL 94 V-0. Designed for surface-mount technology, it employs solder pin termination and includes mounting pegs for secure PCB attachment. Operating temperature ranges from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle surface-mount design with integrated mounting pegs for mechanical stability
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• High-temperature LCP housing provides thermal resistance and UL 94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections requiring right-angle routing
• Wire-to-board connections in compact electronic assemblies
• High-density circuit boards needing stable SMT mounting

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm exact contact plating thickness and housing material grade. Ensure compatibility with automated pick-and-place equipment due to the mounting peg configuration. Cross-reference the RoHS compliance status with the latest manufacturer declaration before final procurement approval.

Headers, Male Pins Selection Notes

Select this component when right-angle board-to-board connectivity is required in space-constrained designs. The 1.27 mm pitch suits high-density applications. Verify that the 1 A current rating meets circuit requirements. The SMT mounting peg feature distinguishes it from standard headers, offering enhanced mechanical retention during reflow soldering processes.

Headers, Male Pins Part Context

Part of the Archer M50 series, known for high-reliability interconnect solutions. The M50 series offers various configurations including straight and right-angle options with different pitch sizes. This specific model represents the right-angle SMT variant within the broader connector ecosystem, designed for robust performance in demanding environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.27 mm pitch, 16-position count, right-angle orientation, and SMT mounting peg specifications exactly.
