M50-4803345

Headers, Male Pins Overview

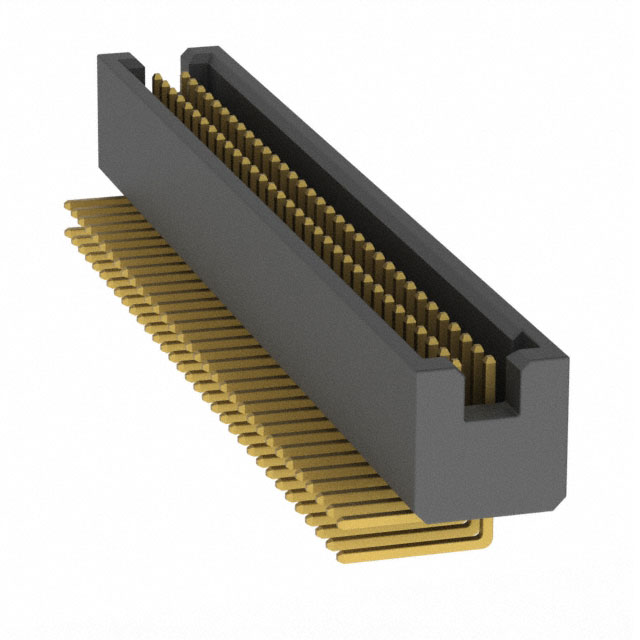

The M50-4803345 is a 66-position right-angle pin header from the Harwin Archer M50 series. It features a 1.27mm (0.050 inch) mating pitch and utilizes a two-row configuration for board-to-board connections. The connector employs through-hole termination with solder joints and incorporates a push-pull fastening mechanism to secure mating interfaces. Contacts are constructed from copper alloy with gold plating, ensuring reliable conductivity. The housing is made of black liquid crystal polymer (LCP), providing high thermal stability and UL94 V-0 flammability rating. Rated current is 1A per contact, supporting operation within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Push-pull latching system ensures secure mechanical retention during vibration
• Liquid crystal polymer insulation offers high heat resistance and dimensional stability
• Gold-plated square contacts provide durable low-resistance electrical pathways

Headers, Male Pins Applications

• High-density board-to-board interconnects in telecommunications equipment
• Signal routing in medical diagnostic devices requiring compact form factors
• Industrial control systems utilizing rigid PCB architectures

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific suffix matches the required pin count and orientation. Ensure compliance with RoHS directives if environmental regulations apply to the assembly. Check for any product change notices regarding material substitutions or packaging updates prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density, right-angle male header is required for rigid board-to-board applications. The 1.27mm pitch allows for significant I/O density within limited footprint areas. The push-pull feature simplifies assembly and disassembly compared to screw-lock variants. Consider the LCP material properties for environments involving reflow soldering at elevated temperatures.

Headers, Male Pins Part Context

This component belongs to the Archer M50 series, designed for space-constrained electronic assemblies. The series emphasizes robust mechanical locking and high-temperature performance. The M50-4803345 specifically addresses needs for 66-channel connectivity in a dual-row format. It complements other headers and receptacles within the same architectural family.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific variant.
