M50-4803745

Headers, Male Pins Overview

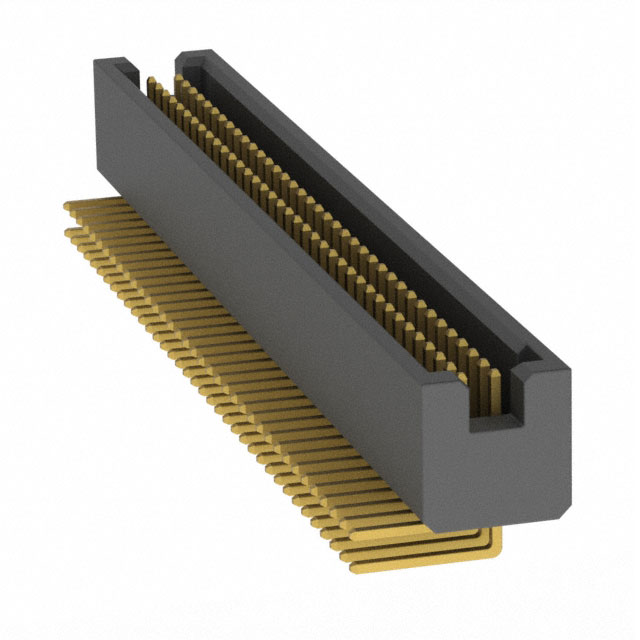

The Harwin M50-4803745 is a 74-position board-to-board header from the ARCHER series. It features a 1.27 mm pitch and a dual in-line configuration with two rows of contacts. The connector utilizes right-angle mounting for vertical PCB integration. Electrical ratings include a current capacity of 1 A and a voltage rating of 300 V. The contacts are gold-plated copper alloy, while the housing is constructed from liquid crystal polymer (LCP).

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact vertical circuit board connections.
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
• High-density 1.27 mm pitch accommodates numerous interconnections within limited space.

Headers, Male Pins Applications

• Compact electronic assemblies requiring high-density interconnects
• Vertical board-to-board signal routing
• Industrial control modules with restricted height constraints

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact pin count and orientation. Ensure compatibility with mating socket connectors within the same ARCHER series family. Confirm RoHS compliance status through official documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when right-angle mounting is required for high-density applications. Verify that the PCB layout supports the 1.27 mm pitch and dual-row configuration. Ensure the operating environment remains within the specified temperature range and electrical ratings defined by the manufacturer.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER series, designed for high-reliability board-to-board connections. The series offers various configurations including surface mount and through-hole options. The M50-4803745 specifically addresses needs for right-angle, high-pin-count interconnects in dense electronic designs.

Headers, Male Pins Replacement Considerations

Consult the official Harwin cross-reference guide for verified substitutes. Generic equivalents may not match the precise 1.27 mm pitch or shrouded design requirements. Ensure any replacement maintains the same right-angle orientation and contact plating specifications.
