M50-4901545

Headers, Male Pins Overview

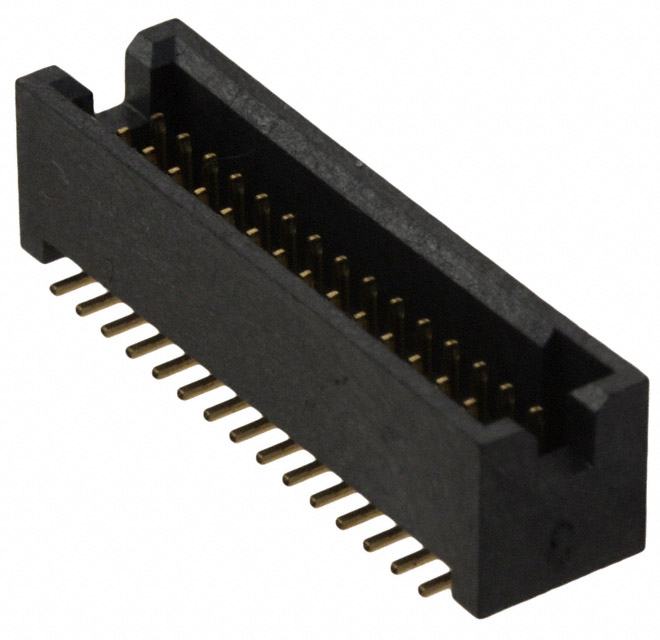

The Harwin M50-4901545 is a 1.27mm pitch DIL vertical SMT shrouded header assembly featuring a 30-position configuration (15+15). It utilizes gold-plated contacts for reliable signal transmission and is designed for surface mount technology applications requiring high-density interconnects.

Headers, Male Pins Feature Summary

• Vertical surface mount design for space-efficient PCB integration
• Shrouded housing structure to ensure correct mating alignment
• Gold-plated contact finish for enhanced conductivity and corrosion resistance

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Consumer electronics assemblies
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific pin count and orientation against the schematic before procurement. Confirm that the surface mount footprint matches the target PCB layout dimensions. Ensure compatibility with standard reflow soldering profiles to maintain connector integrity during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header is required for dense circuit layouts. The 1.27mm pitch allows for compact designs compared to larger pitch alternatives. Consider the gold plating for environments where long-term reliability and low contact resistance are critical operational factors.

Headers, Male Pins Part Context

This part belongs to the Harwin M50 series of rectangular connectors, which are engineered for various electronic applications. The series offers multiple configurations including through-hole and surface mount options, catering to diverse manufacturing needs within the broader category of electronic interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M50 series headers with identical 1.27mm pitch and 30-pin configurations. Verify mechanical dimensions and electrical ratings before swapping with generic equivalents to ensure proper fit and function.
