M52-5001045

Headers, Receptacles, Female Sockets Overview

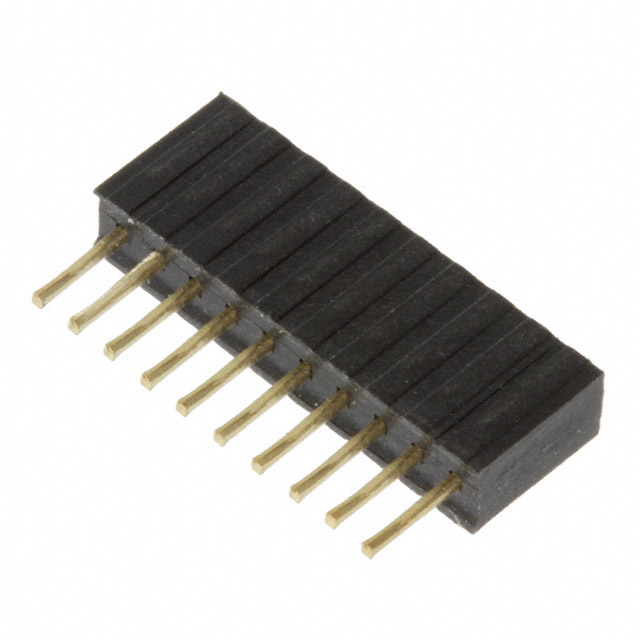

The Harwin M52-5001045 is a single-row, straight through-hole PCB socket assembly from the Archer M52 series. It features 10 positions with a 1.27 mm pitch and gold-plated bronze contacts. Designed for board-to-board connections, it supports a current rating of 1A and a voltage of 500V. The connector utilizes solder pin termination and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Single row vertical socket configuration
• Gold-plated contact finish
• Through-hole solder pin termination

Headers, Receptacles, Female Sockets Applications

• General purpose interconnects
• Medical equipment
• Telecommunications systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer part number against official Harwin documentation to confirm current availability status. Ensure that the selected component matches the required electrical ratings and mechanical dimensions for the intended application before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row vertical socket is required for high-density board-to-board applications. The 1.27 mm pitch allows for compact circuit designs, while the gold plating ensures reliable conductivity in general-purpose environments.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M52 series, which utilizes 0.46mm square pins. The series offers both single and double row configurations, providing flexibility for various PCB layout requirements while maintaining consistent mechanical and electrical performance standards across the product line.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
