M52-5102545

Headers, Receptacles, Female Sockets Overview

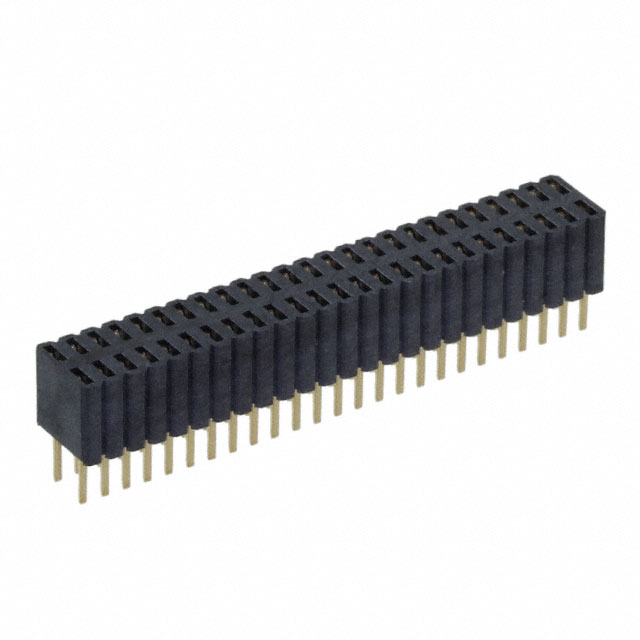

The Harwin M52-5102545 is a vertical socket assembly from the ARCHER series, designed for board-to-board connections. It features 25 positions with a 1.27 mm pitch and double row configuration. The connector utilizes gold-plated phosphor bronze contacts housed in black polyamide insulation rated UL94 V-0. It supports through-hole solder termination and operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical double-row architecture for compact board-to-board integration
• Gold-plated contacts ensure reliable signal transmission
• High-temperature resistant PA6T insulation material

Headers, Receptacles, Female Sockets Applications

• Medical equipment interconnects
• Telecommunications infrastructure
• General purpose industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count and row configuration, as distributor listings may contain discrepancies regarding position counts. Ensure compatibility with mating header assemblies before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, double-row connection is required for space-constrained applications. The 1.27 mm pitch allows for high density, while the through-hole mounting provides mechanical stability. Verify that the mating system matches the 25-position requirement.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin ARCHER M52 series, which offers various configurations including single and double rows with different contact counts. The series is characterized by its robust construction and suitability for demanding environments requiring reliable electrical connectivity.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin engineering for potential cross-references if this specific variant is unavailable.
