M52-5150545

Headers, Receptacles, Female Sockets Overview

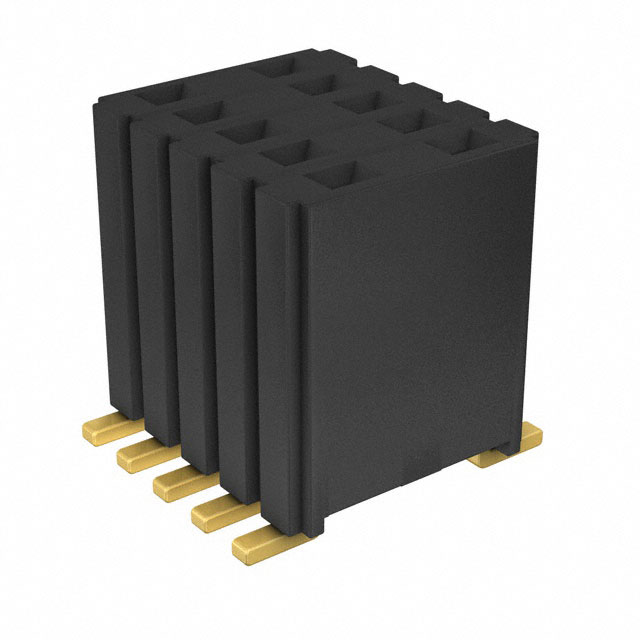

The M52-5150545 is a PCB receptacle from the Harwin Archer M52 series, designed for board-to-board connections. It features a 1.27 mm pitch and comprises 10 positions arranged in a dual-row configuration. The component utilizes surface mount technology with solder pin termination methods. Contacts are constructed from phosphor bronze and finished with gold plating to ensure reliable conductivity. The housing is made of nylon, providing structural integrity for vertical orientation mounting.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row socket assembly architecture supporting compact board-to-board integration
• Gold-plated phosphor bronze contacts ensuring stable electrical performance
• Surface mount installation method compatible with automated PCB assembly processes

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects in electronic assemblies
• Vertical mounting applications requiring dual-row connectivity
• Compact electronic devices utilizing surface mount technology

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number M52-5150545 against official Harwin documentation to confirm active status and exact specifications. Ensure compatibility with surface mount assembly requirements and verify that the dual-row, 10-position configuration meets the design needs. Cross-reference technical datasheets for precise dimensional tolerances and material certifications before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a dual-row, surface mount receptacle with a 1.27 mm pitch is required. The 10-position count suits applications needing moderate density in a vertical form factor. Consider the gold-plated phosphor bronze contacts for corrosion resistance and reliability. Verify that the nylon housing and surface mount termination align with the manufacturing process and environmental constraints of the target assembly.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer M52 series, which offers various header and wire housing solutions. The M52 series provides options for different row counts, positions, and mounting types. This specific model represents the dual-row surface mount variant within that family, distinguished by its 1.27 mm pitch and 10-contact capacity.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult Harwin's official resources or authorized distributors for potential cross-references or alternative models within the M52 series that match the required electrical and mechanical specifications.
