M55-6013242R

Headers, Receptacles, Female Sockets Overview

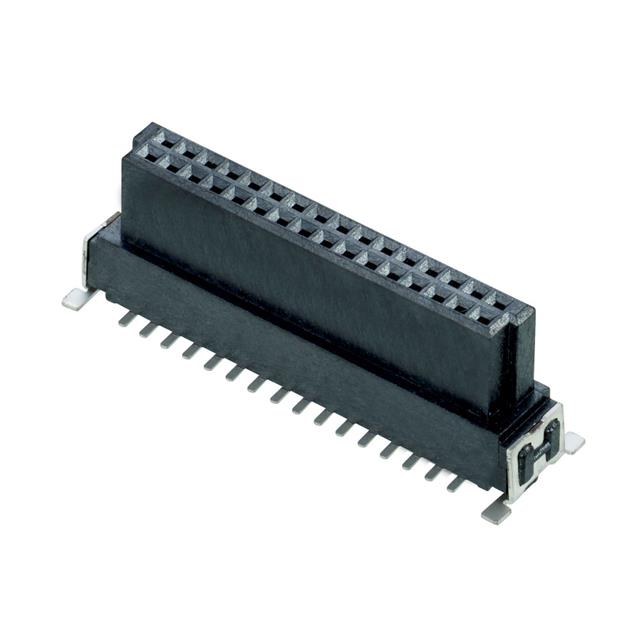

The Harwin M55-6013242R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 32-position female receptacle with a 1.27 mm pitch across two rows. Designed for vertical surface mount technology, it utilizes gold-plated phosphor bronze contacts housed in liquid crystal polymer. The connector supports a current rating of 1.2 A and a voltage rating of 100 VAC. It operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row female receptacle configuration for high-density interconnects
• Vertical surface mount termination for compact PCB integration
• Gold-plated phosphor bronze contacts ensuring reliable conductivity
• Liquid crystal polymer housing providing thermal stability

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board connections
• Mezzanine circuit interconnects
• Compact electronic device assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and packaging format. Ensure compatibility with mating male headers regarding stack height and alignment pegs. Confirm RoHS compliance status through official manufacturer documentation prior to final procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring a 1.27 mm pitch vertical interface. Ensure the design accommodates the dual-row female socket geometry. Verify that the mating male connector matches the series specifications for proper mechanical engagement and electrical performance.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer Kontrol M55 series, designed for space-constrained electronics. It provides a robust solution for vertical stacking or direct board connections. The series emphasizes reliability and precision engineering for modern high-density PCB layouts.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating parts include Harwin M55-7013242R and other M55 series male headers with matching 1.27 mm pitch and 32-position count.

Headers, Receptacles, Female Sockets FAQ

What is the contact material for this connector?

The contacts are made of phosphor bronze with gold plating.

Is this connector suitable for vertical mounting?

Yes, it is designed as a vertical surface mount receptacle.
