M80-4000642

Headers, Receptacles, Female Sockets Overview

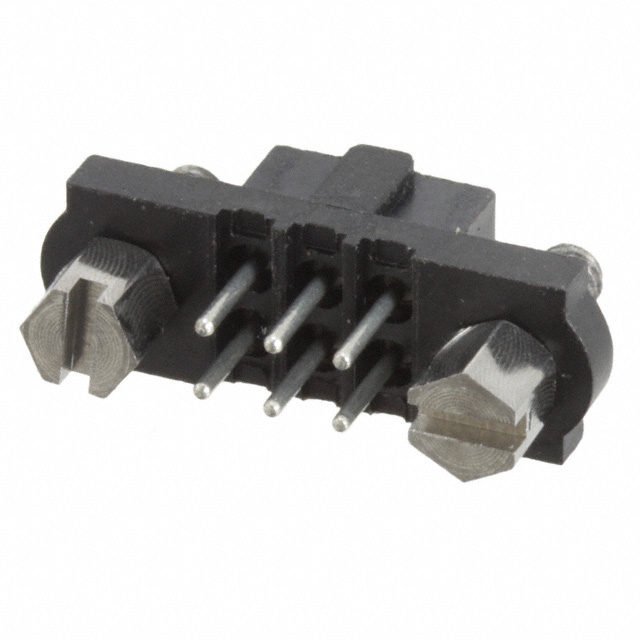

The Harwin M80-4000642 is a Datamate J-Tek board-to-board receptacle connector featuring a 2mm pitch and 6 positions. It utilizes a straight, through-hole solder termination with gold-plated beryllium copper contacts housed in black PPS insulation. Rated for 120V and designed for reliable performance across an operating temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Features jackscrew locking mechanisms for secure mating retention
• Includes integrated mounting flanges for stable PCB attachment
• Utilizes polarizing keys to ensure correct alignment during assembly

Headers, Receptacles, Female Sockets Applications

• Automotive electronic control units
• General industrial equipment interfaces
• Military communication systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact stacking heights and contact configurations. Ensure compatibility with corresponding male headers within the Datamate J-Tek series before final procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a robust, locked board-to-board connection is required. The jackscrew design provides superior vibration resistance compared to latching-only connectors, making it suitable for demanding environments requiring high mechanical stability.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Datamate J-Tek family, known for high-density interconnects. The M80-4000642 specifically serves as a female receptacle variant, offering a compact solution for space-constrained applications requiring durable electrical connections.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin M80-400 series receptacles with matching pin counts and stacking heights. Verify that alternative parts maintain identical jackscrew locking features and environmental ratings.
