MA4ZD1400L

Diode Arrays Overview

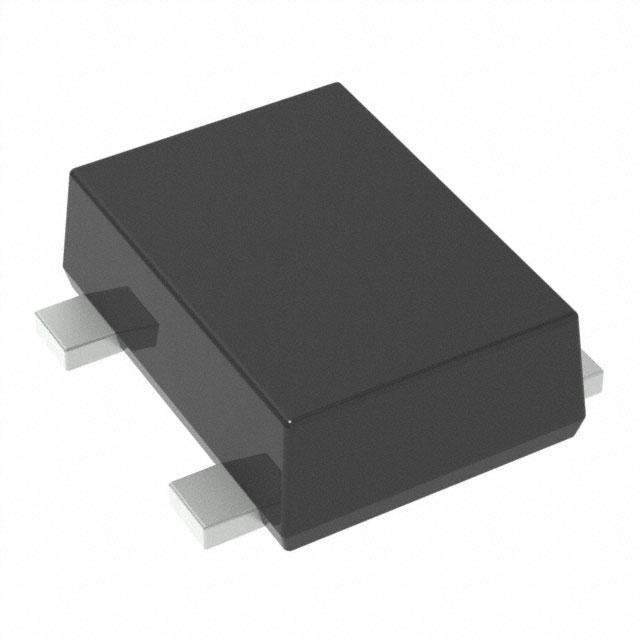

The MA4ZD140L is a silicon epitaxial planar Schottky barrier diode designed for high-speed switching applications. It integrates two isolated elements within a single SMini4-F1 package to facilitate high-density mounting. The device features a maximum repetitive peak reverse voltage of 20 V and supports a single forward current rating of 100 mA. Key electrical characteristics include a low forward voltage below 0.40 V at 100 mA, a maximum reverse current of 20 µA at 10 V, and a typical junction capacitance of 25 pF. The component exhibits a fast reverse recovery time of 3 ns.

Diode Arrays Feature Summary

• Dual isolated elements integrated into a single package for high-density mounting
• Low forward voltage characteristic with VF less than 0.40 V
• Fast switching capability with a reverse recovery time of 3 ns

Diode Arrays Applications

• High-speed switching circuits
• General electronic equipment
• Communications equipment
• Measuring instruments

Diode Arrays Procurement Notes

Verify the specific ordering suffix against official Panasonic documentation to confirm exact packaging and compliance status. Confirm that the selected variant matches the required RoHS directive standards. Check the manufacturer's website for the latest product lifecycle information, as this component may be subject to maintenance or discontinuation plans. Ensure all design parameters remain within the absolute maximum ratings specified in the datasheet.

Diode Arrays Selection Notes

Select this component when dual isolated Schottky diodes are required in a compact surface-mount form factor. The low forward voltage and fast reverse recovery time make it suitable for high-frequency applications. Verify that the 20 V reverse voltage rating meets the circuit requirements. Consider the thermal management capabilities relative to the 125 °C junction temperature limit during operation.

Diode Arrays Part Context

The MA4ZD140L belongs to the MA4ZD14 series of silicon epitaxial planar Schottky barrier diodes manufactured by Panasonic Electronic Components. These devices are specifically engineered for high-speed switching applications. The series utilizes a standard SMini4-F1 package configuration to provide efficient space utilization on printed circuit boards while maintaining reliable electrical performance under standard operating conditions.

Diode Arrays Replacement Considerations

Consult official Panasonic resources for verified substitute part numbers. No public confirmed substitutes are listed in the provided documentation.
