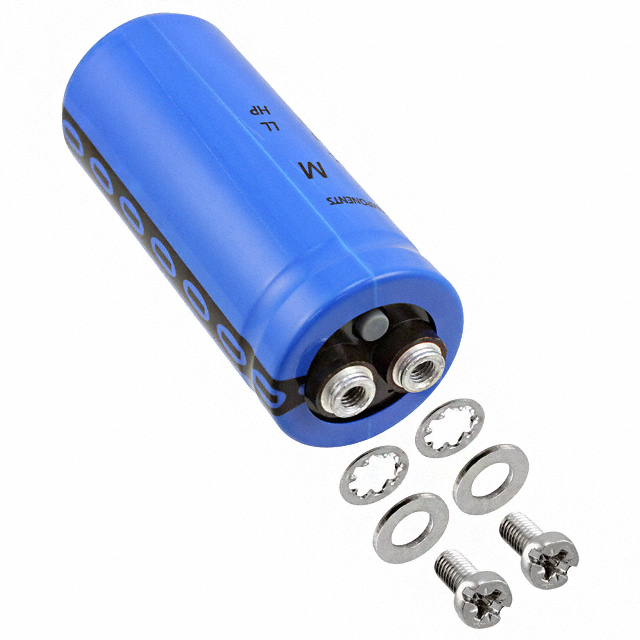

MAL210129332E3

MAL210129332E3 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Vishay Beyschlag/Draloric/BC Components. Its product description is CAP ALUM 3300UF 20% 100V SCREW. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for MAL210129332E3

• Description：CAP ALUM 3300UF 20% 100V SCREW
• Series：101 PHR-ST
• Mfr：Vishay Beyschlag/Draloric/BC Components
• Package：Bulk
• Capacitance：3300 µF
• Tolerance：±20%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：35mOhm @ 100Hz
• Lifetime @ Temp.：10000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：6.6 A @ 100 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：0.504" (12.80mm)
• Size / Dimension：1.378" Dia (35.00mm)
• Height - Seated (Max)：3.413" (86.70mm)
• Surface Mount Land Size：-
• Mounting Type：Chassis Mount
• Package / Case：Radial, Can - Screw Terminals
• Impedance：21 mOhms
