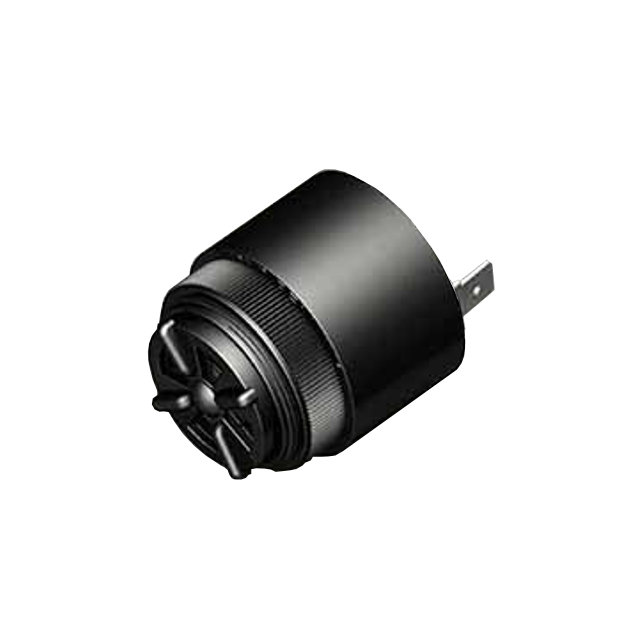

MC-V09-301-Q

$22.13

Description：BUZZER PIEZO 35.81MM PNL MNT
Series：AudioLarm II
Mfr：Floyd Bell Inc
Package：Bulk

SKU:df43a6fb51e1 Category: Alarms, Buzzers, and Sirens Brand: Floyd Bell Inc

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MC-V09-301-Q is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Floyd Bell Inc. Its product description is BUZZER PIEZO 35.81MM PNL MNT. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for MC-V09-301-Q

Description：BUZZER PIEZO 35.81MM PNL MNT
Series：AudioLarm II
Mfr：Floyd Bell Inc
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：AC
Frequency：2.9kHz
Technology：Piezo
Operating Mode：Single Tone
Duration：-
Sound Pressure Level (SPL)：95dB @ 220V, 61cm
Current - Supply：20 ~ 40mA
Port Location：Top
Operating Temperature：-20°C ~ 65°C
Approval Agency：UL, UR
Ratings：-
Ingress Protection：IP68 - Dust Tight, Waterproof
Mounting Type：Panel Mount
Termination：Quick Connect Tab - 0.250" (6.35mm)
Height - Seated (Max)：1.480" (37.59mm)
Voltage - Rated：-
Voltage Range：130 ~ 220V
Size / Dimension：1.410" Dia (35.81mm)

Alarms, Buzzers, And Sirens datasheet and documents for MC-V09-301-Q

MC-V09-301-Q

Alarms, Buzzers, And Sirens Overview

The MC-V09-301-Q is a piezoelectric buzzer manufactured by Floyd Bell Inc. It features a panel mount design with a diameter of 35.81mm. The component operates on an AC input voltage range of 130 to 220 Vac. It produces a sound pressure level of 90-95 dB(A) and draws a current of 20-40 mA during operation. The device utilizes quick connect blades for electrical interfacing.

Alarms, Buzzers, And Sirens Feature Summary

Piezoelectric acoustic generation mechanism
Panel mount mechanical configuration
Quick connect blade termination style

Alarms, Buzzers, And Sirens Applications

Industrial control panels requiring audible status indication
High-voltage AC equipment monitoring systems
Alarm circuits utilizing standard mains voltage ranges

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific voltage rating against your system's AC supply, as this model requires 130-220 Vac. Confirm that the mounting hole diameter matches the 35.81mm specification. Ensure the quick connect blade terminals are compatible with your wiring harness or PCB layout. Check RoHS compliance requirements if applicable to your manufacturing standards.

Alarms, Buzzers, And Sirens Selection Notes

Select this component only if the application supports high-voltage AC operation directly. Consider the 90-95 dB(A) output level for audibility requirements in noisy environments. Evaluate the physical space constraints for the 35.81mm diameter panel cutout. Compare with lower voltage DC alternatives if system power supplies differ significantly from standard AC lines.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the Floyd Bell Inc alarm and buzzer product line. It is categorized under piezoelectric buzzers designed for panel mounting. The manufacturer specializes in acoustic signaling devices for industrial and commercial applications. Similar models may vary in voltage ratings or mounting styles within the same series.
