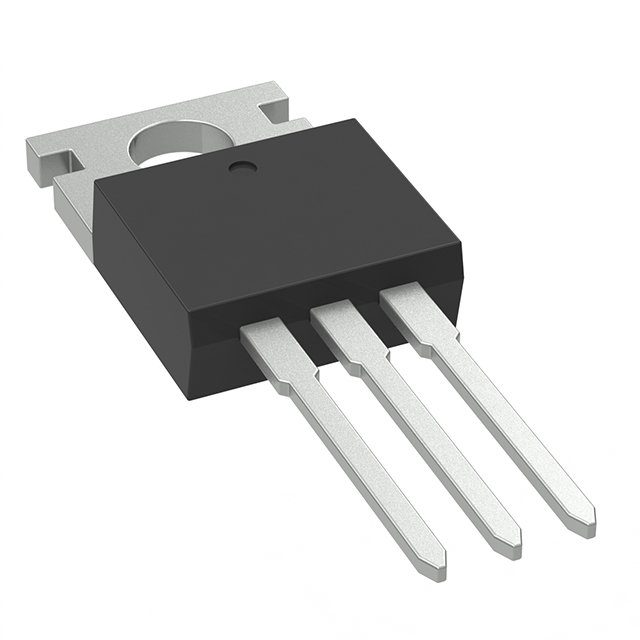

MCP150N06A-BP is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is MOSFET N-CHANNEL MOSFET. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for MCP150N06A-BP
- Description：MOSFET N-CHANNEL MOSFET
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：60 V
- Current - Continuous Drain (Id) @ 25°C：150A
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：5.5mOhm @ 75A, 10V
- Vgs(th) (Max) @ Id：4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：69 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：4200 pF @ 30 V
- FET Feature：-
- Power Dissipation (Max)：225W
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Through Hole
- Supplier Device Package：TO-220AB (H)
- Package / Case：TO-220-3
Single FETs, MOSFETs datasheet and documents for MCP150N06A-BP
Single FETs, MOSFETs Overview
The MCP150N06A-BP is an N-Channel MOSFET manufactured by Micro Commercial Components. It features a drain-to-source voltage of 60V and a continuous drain current of 150A at case temperature. The device utilizes a TO-220AB through-hole package for thermal management. This component is designed for power switching applications requiring low on-resistance and high current handling capabilities within the specified voltage range.
Single FETs, MOSFETs Feature Summary
- N-Channel MOSFET technology
- Through-hole TO-220AB package
- High current capability
Single FETs, MOSFETs Applications
- Power switching circuits
- Motor control systems
- DC-DC converters
Single FETs, MOSFETs Procurement Notes
Verify component authenticity through authorized channels as the lifecycle status is obsolete. Confirm datasheet revisions and electrical parameters against official Micro Commercial Components documentation before integration. Ensure compatibility with existing thermal design requirements due to the specific package type and current ratings.
Single FETs, MOSFETs Selection Notes
Evaluate thermal dissipation needs given the 150A rating and TO-220AB package. Compare on-resistance values against alternative N-Channel MOSFETs in the 60V class. Consider availability constraints due to obsolete status when designing new products.
Single FETs, MOSFETs Part Context
This part belongs to the MCC N-Channel MOSFET series, which includes variants like MCP90N06Y-BP and MCP90N12A-BP. These components share similar packaging technologies but differ in voltage and current specifications. The MCP150N06A-BP specifically targets higher current applications within the 60V limit.
Single FETs, MOSFETs Replacement Considerations
Check for direct substitutes from MCC or other manufacturers offering equivalent 60V, 150A N-Channel MOSFETs in TO-220AB packages. Verify pinout compatibility and thermal characteristics when selecting alternatives.
