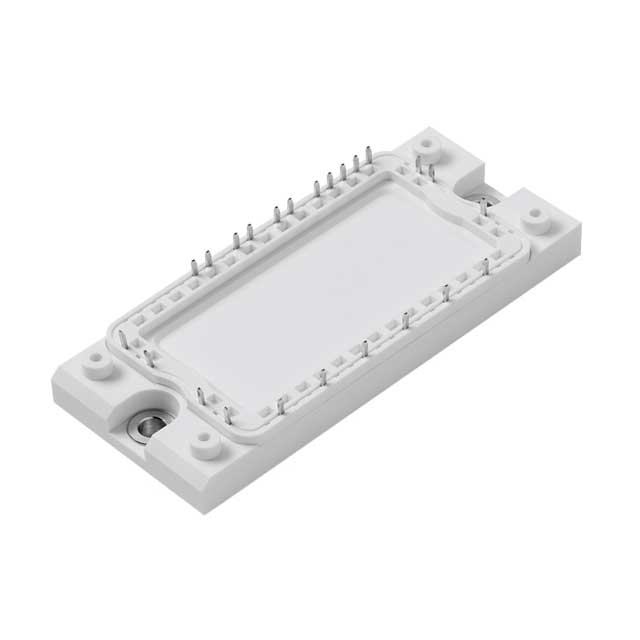

MIXA40WB1200TED

Description：IGBT MODULE 1200V 60A 195W E2
Series：-

SKU:92cfe0d8c1ee Category: IGBT Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 60A 195W E2
Series：-
Mfr：IXYS
Package：Box
IGBT Type：PT
Configuration：Three Phase Inverter with Brake
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 35A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：E2
Supplier Device Package：E2
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：60 A
Power - Max：195 W
Current - Collector Cutoff (Max)：2.1 mA
Input Capacitance (Cies) @ Vce：-

Download product information

MIXA40WB1200TED

Overview

The MIXA40WB1200TED is a silicon IGBT module manufactured by IXYS, utilizing XPT technology. It features a 3-phase inverter configuration with a collector-emitter maximum voltage of 1.2 kV and a continuous collector current of 60 A at 25°C. The saturation voltage is 1.8 V, while the gate-emitter leakage current is limited to 500 nA. Power dissipation reaches 195 W, and the unit operates within a temperature range of -40°C to +125°C. Housed in an E2-Pack with screw mount installation, it weighs 180 g.

Feature Summary

Integrates XPT technology for optimized switching performance
Designed for three-phase inverter applications
Utilizes E2-Pack housing for standard mounting

Applications

Converter-brake inverter systems
Industrial motor drives
Power conversion equipment

Procurement Notes

Verify the specific ordering suffix against official IXYS documentation to confirm package type and terminal configuration. Ensure compliance with RoHS and REACH requirements as listed in the manufacturer's datasheet. Cross-reference the Mouser part number 747-MIXA40WB1200TED for accurate identification during sourcing.

Selection Notes

Select this component for designs requiring a 1.2 kV rating with 60 A continuous current capability. The E2-Pack form factor suits applications needing screw-mount integration. Verify thermal management requirements against the 195 W power dissipation limit and ensure the operating environment stays within the specified -40°C to +125°C range.

Part Context

This module belongs to the MIXA40WB1200 series from IXYS. It shares the XPT technology platform with other models in the lineup but differs in current ratings and packaging. The TED suffix typically denotes specific terminal or packaging variations within the product family.

Replacement Considerations

Direct substitutes include MIXA40W1200TED and MIXA30W1200TED, though current ratings vary. Verify pin compatibility and thermal characteristics before substitution.
